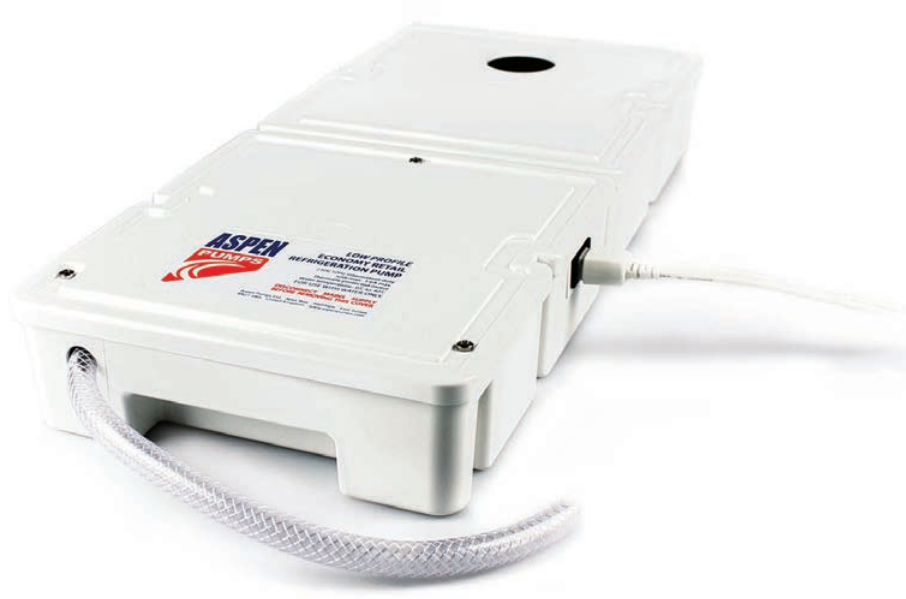

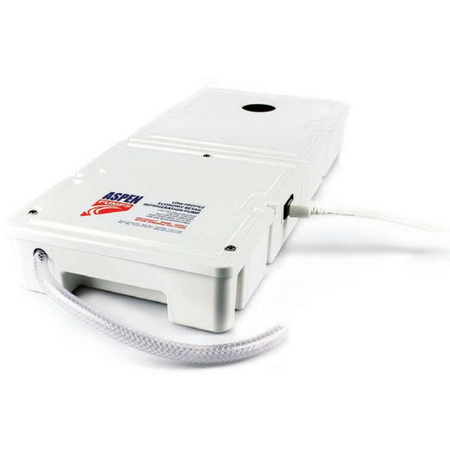

Low Profile ERRP Condensate Pump | 190 L/h Max Flow Rate | IP24 Rated | by Aspen Pumps
The Low Profile ERRP Condensate Pump is designed for efficient condensate removal in refrigeration units, featuring a maximum flow rate of 190 L/h and an IP24 protection rating. Its lightweight and slim design ensures easy installation and maintenance, making it ideal for retail refrigeration and cold store applications. With a 2-year warranty, this pump is built for reliability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Profile ERRP Condensate Pump | 190 L/h Max Flow Rate | IP24 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2597
Alternatively Known As: Economical Retail Refrigeration Pump, ERRP Condensate Pump, Refrigeration Drain Pump
Technical Specifications
- Max flow rate: 190 L/h at 0 head
- Max recommended head: 21 m
- Tank capacity: 3.5 L
- Noise level: 60 dB(A) at 1 m
- Power supply: 230 VAC, 0.2A, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C / 104°F
- Inlet size: 50 mm
- Outlet size: 10 mm
- IP Protection rating: IP24
- Safety switch: 3.0A normally closed
- Thermal protection included
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.2 kg
Key Features
- Lightweight and slim design
- Easy to clean
- Filter to catch debris
- Plug and play installation
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper electrical and plumbing connections.
Applications
- Refrigeration units
- Cold store cabinets
- Retail refrigeration cabinets
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
Environmental Benefits
- Helps maintain refrigeration efficiency by removing condensate water
- Reduces risk of water damage and contamination in refrigeration units
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Low Profile ERRP Top Inlet Condensate Removal Pump is available now for immediate purchase. Ideal for retail refrigeration and cold store applications.
