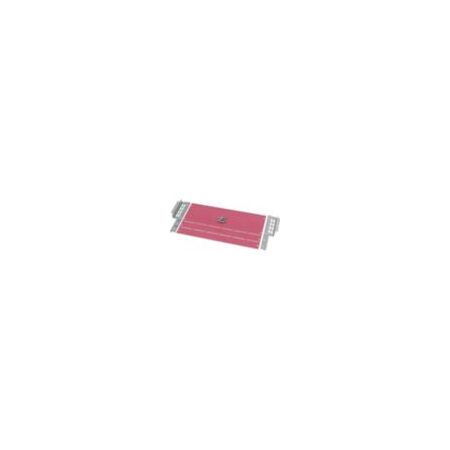

LV Switchgear Partition Panel | Modular Spacing 12.5mm | Horizontal Installation | Eaton
Eaton's LV switchgear partition panel features a modular spacing of 12.5mm and is designed for horizontal installation—ideal for internal separation in LV switchgear systems. Built for electrical distribution and control panels, it supports multiple internal separation forms for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LV Switchgear Partition Panel | Modular Spacing 12.5mm | Horizontal Installation | Eaton
Brand: Eaton
SKU: Y7-166227
Alternatively Known As: LV Switchgear Partition, LV Switchgear Internal Separator, Eaton xEnergy Partition Panel
Technical Specifications
- Product Name: Eaton xEnergy Main LV switchgear
- Catalog Number: 166227
- EAN: 4015081627547
- Material: Other
- Surface finishing: Other
- Color: Other
- Modular spacing: 12.5 mm
- Number of height units: 0
- Suitable for enclosure building width: 800 mm
- Suitable for enclosure building depth: 600 mm
- Suitable for internal separation forms: 2a, 2b, 3a, 3b, 4a, 4b
- Dimensions (H x L x W): 40mm x 310mm x 656mm
- Weight: 1.275 kg
Key Features
- Partition for connection and busbar rear area
- Horizontal installation
- Modular spacing of 12.5 mm
- Compatible with multiple internal separation forms (2a, 2b, 3a, 3b, 4a, 4b)
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with LV switchgear systems to ensure compliance with safety standards.
Applications
- Internal separation in LV switchgear systems
- Suitable for enclosure building with width 800 mm and depth 600 mm
- Used in electrical distribution and control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Supports modular design for efficient electrical system management and reduced material waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton xEnergy Main LV switchgear partition XPIX40BCB-H-0802 is available for immediate purchase, ideal for electrical distribution and control panel applications.
