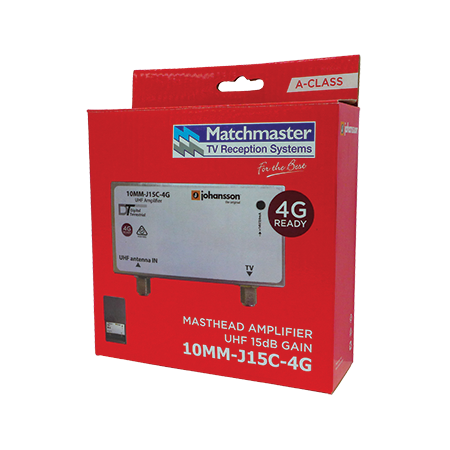

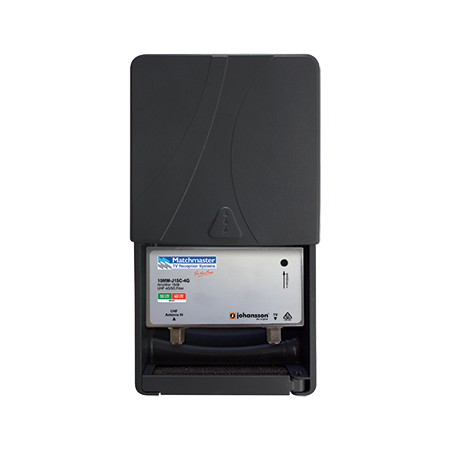

Masthead Amplifier UHF 15dB | 4G/5G Filter | Compact Design by Matchmaster

SKU: 10MM-J15C-4G
$106.60 List price: $129.10
+
Masthead amplifier with 15dB gain and 4G/5G filter—ideal for enhancing UHF television reception. Built for residential and commercial use, with a compact design for easy installation.

Product Name/Title: Masthead Amplifier UHF 15dB with 4G/5G Filter

Brand: Matchmaster

SKU: 10MM-J15C-4G

Alternatively Known As: UHF Masthead Amplifier, 15dB Signal Booster, 4G/5G Filtered Amplifier, Low Noise UHF Amplifier

Technical Specifications
  • Band: UHF
  • Frequency Range: 520-694MHz
  • Gain Maximum: 18dB
  • Noise Figure: 2dB
  • Maximum Input Level: 84dBµV
  • Maximum Output Level: 95dBµV
  • Consumption: 20mA at 14V DC
  • Connectors: 'F' Type
  • Dimensions (H x L x W): 40mm x 60mm x 100mm
  • Weight: 0.2 kg
Key Features
  • 15dB low noise fixed gain amplifier in a fully screened housing to maximise signal quality
  • Built-in 4G/5G LTE 694MHz low pass filter to eliminate unwanted frequencies
  • Non-corrosive circuit board with high-quality components

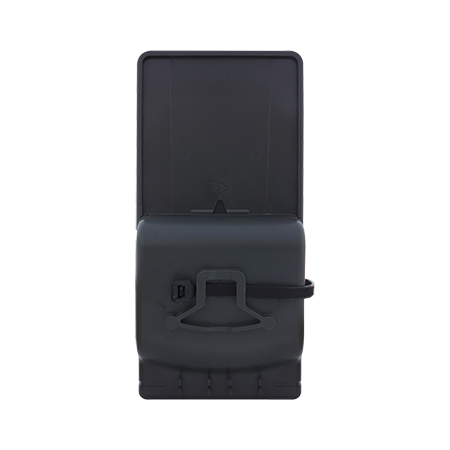

  • U/V stabilised weatherproof housing and cable tie
  • Wide range DC voltage operation, 5-24V DC
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure optimal signal performance and safety.
Applications
  • Residential: Enhance TV signal reception for homes
  • Commercial: Improve signal quality in offices and commercial buildings
  • Broadcasting: Suitable for UHF signal amplification in various setups
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Improves signal quality reducing the need for multiple devices and lowering electronic waste
  • Energy-efficient operation with low power consumption (20mA/14VDC)
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster Masthead Amplifier UHF 15dB with 4G/5G Filter is available now for immediate purchase. Ideal for residential and commercial applications requiring enhanced UHF signal reception.

Brochure (10mm-j15c-4g_brochure.pdf, 632 Kb) [Download]

Manual (10mm-j15c-4g_manual.pdf, 57 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
