Maxi Lime Condensate Pump | 35L/h Max Flow Rate | IP24 Rated | by Aspen Pumps
The Maxi Lime Condensate Pump is designed for efficient condensate removal, featuring a max flow rate of 35L/h and an IP24 protection rating. Ideal for high wall split air conditioning systems, this self-priming pump ensures reliable operation in humid environments, helping to prevent water damage and mold growth. With a noise level of just 35 dB(A), it’s perfect for residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Maxi Lime Condensate Pump | 35L/h Max Flow Rate | IP24 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2213
Alternatively Known As: Maxi Lime Condensate Pump, Aspen Maxi Lime Pump, Condensate Removal Pump Maxi Lime
Technical Specifications
- Max flow rate: 35L/h at 0 head
- Maximum recommended head: 15m
- Noise level: 35 dB(A) at 1m
- Power supply: 230 VAC, 0.1A, 16W, 50/60Hz
- Rated for non-continuous operation
- Maximum water temperature: 40°C (104°F)
- Discharge tube diameter: 6mm ID
- IP Protection rating: IP24
- Safety switch: 3.0A normally closed
- Thermal protection included
- Fully potted for durability
- Self-priming pump
- Dimensions (H x L x W): 150mm x 200mm x 120mm
- Weight: 1.2 kg
Key Features
- Sits in trunking elbow for compact installation
- Can be installed left or right for flexible positioning
- Easy access for servicing and maintenance

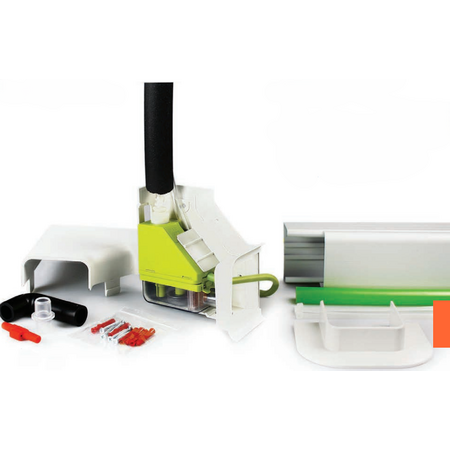

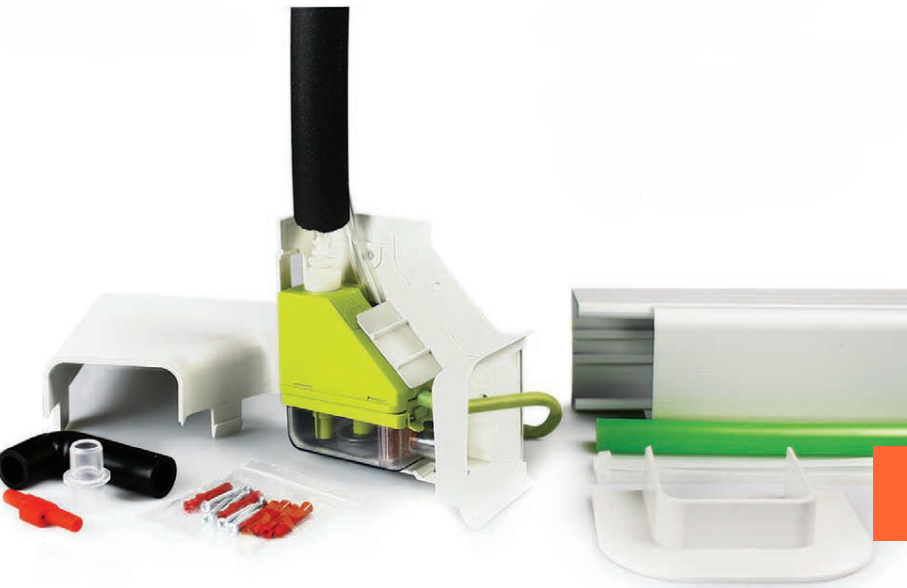

- Includes 800mm trunking for convenient setup
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical safety standards.
Applications
- High wall split air conditioning systems
- Installation on internal walls next to AC units with paircoil
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth
- Low power consumption at 16W reduces energy use
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Maxi Lime Condensate Removal Pump is available now for immediate purchase. Ideal for use with larger air conditioning units and humid environments requiring reliable condensate management.
