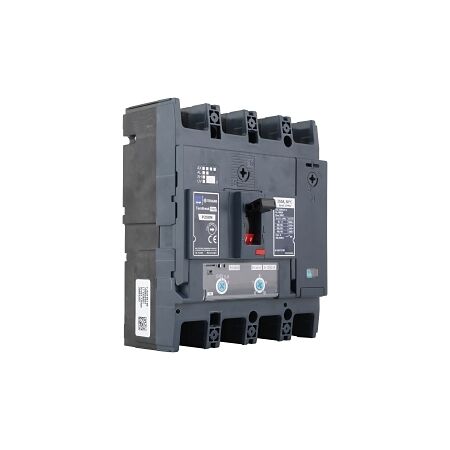

MCCB 250 Frame 50kA 4P 200A | Adjustable Thermal & Magnetic | High Breaking Capacity by NHP
MCCB with 250 frame size, 50kA breaking capacity, and adjustable thermal/magnetic settings—ideal for industrial and commercial power distribution. Built for reliable circuit protection, with high efficiency and energy loss reduction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 200 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 125-200 A
- Instantaneous Protection Adjustment Range: 1200-2400 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 30000 cycles
- Electrical Life: 10000 cycles
- Power Loss: 36 W
- Dimensions (H x L x W): 165mm x 95.5mm x 140mm
- Weight: 2 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 50 kA for reliable circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits from overload and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 50kA 4P 200A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
