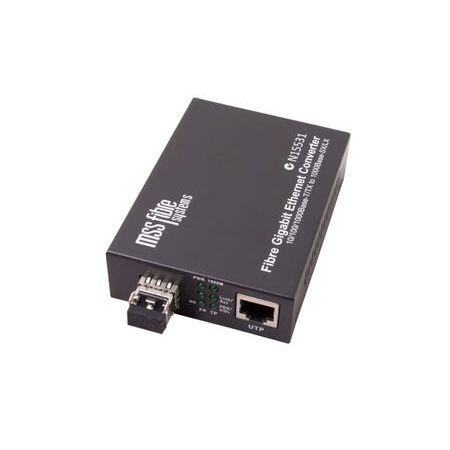

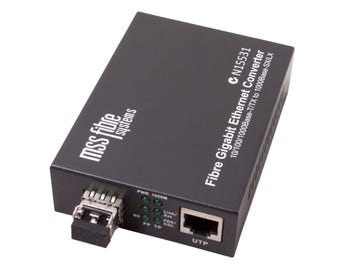

Media Converter 1000B-T to 1000B-SX | 850NM Wavelength | 550MTR Range | LC Connector by Cabac
This media converter supports 1000B-T to 1000B-SX connections with an 850NM wavelength and a 550MTR range—ideal for extending network reach. Built for reliable data transmission, it features an LC connector for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Media Converter 1000B-T to 1000B-SX | 850NM | 550MTR Range | LC Connector by Unspecified
Brand: Cabac
SKU: FC-1000MLC-550
Alternatively Known As: Gigabit Media Converter, Fibre Optic Media Converter, 1000Base-TX to 1000Base-SX Converter, LC Fibre Converter
Technical Specifications
- Data Rate: 1000Mbps/1Gbps
- Wavelength: 850nm Multimode
- Maximum Transmission Distance: 550m
- Port: 10/100/1000BaseT/TX auto-negotiating RJ-45 twisted-pair connector
- Fibre Interface: LC
- Supports full and half duplex modes
- Store-and-forward switching architecture
- Auto-MDIX capability on twisted-pair port
- Dimensions (H x L x W): 25mm x 75mm x 100mm
- Weight: 0.2 kg
Key Features
- Automatic identification of MDI/MDI-X cross line
- 10/100/1000MBPS port with full half duplex auto-negotiation
- Back pressure flow control for full duplex
- Converter mode with auto-change forward (switch) function
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- LAN
- FTTx
- Telecommunication networks
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient network infrastructure reducing the need for extensive cabling and hardware.
- Supports energy-efficient network operation by enabling high-speed data transmission over fibre.
Warranty Information
Standard 1 year warranty against manufacturing defects.
Available Now
The Cabac 1000B-T to 1000B-SX MM 850NM LC 550MTR Media Converter is available now for immediate purchase. Ideal for LAN, FTTx, and telecommunication network applications.
