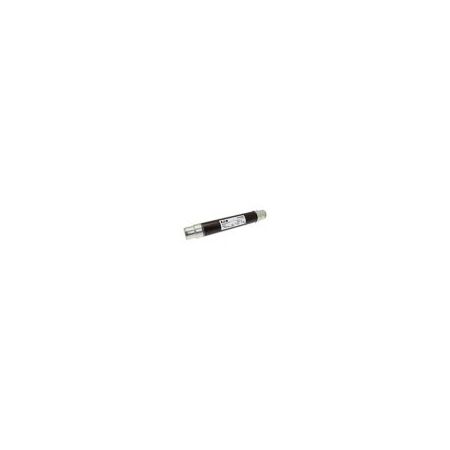

Medium Voltage DIN Fuse 12kV 40A | Back-up with Striker Indicator | Brown by Eaton
This medium voltage DIN fuse features a 12kV AC voltage rating and a 40A amperage rating—ideal for transformer protection in industrial and commercial settings. Built for durability with a back-up design and striker indicator, it ensures reliable performance for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage DIN Fuse 12kV 40A | Back-up with Striker Indicator | Brown by Eaton
Brand: Eaton
SKU: 12TDLEJ40
Alternatively Known As: 12kV DIN Fuse, 40 Amp Resin Seal Fuse, Medium Voltage DIN Fuse, Transformer Protection Fuse
Technical Specifications
- Amperage Rating: 40 A
- Voltage Rating: 12 kV AC
- Fuse Size: 51 x 292 mm
- Breaking Capacity: 63 kA
- Fuse Indicator: With Striker
- Installation Technique: Air
- Performance Category: Back-up
- Rated Frequency: 50 Hz
- Resistance: 17.2 Ohms
- Watt Losses: 36 W
- Fuse Diameter: 51 mm
- Interrupt Rating: 63 kAIC
- Construction Type: Bolt-on
- Mounting Method: Clip-in
- Color: Brown
- Class: Class back-up
- Pre arc (I2T): 2.4 x 1000
- Barrels: 1
- Special Features: Back-up, Transformer protection, Indoor or outdoor use
- Fuse Type: TDLEJ
- Dimensions (H x L x W): 54mm x 292mm x 51mm
- Weight: 1.574 kg
Key Features
- Medium voltage DIN fuse with 40 A amperage rating
- 12 kV AC voltage rating
- Back-up fuse type with striker indicator
- Bolt-on construction with clip-in mounting method
- Interrupt rating of 63 kAIC
- Suitable for indoor or outdoor use
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with medium voltage equipment to ensure safety and compliance.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal construction reduces environmental contamination risk
- Long service life reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from Eaton, typically covering manufacturing defects.
Available Now
The Eaton 12KV 40Amp 2" DIN Brown Resin Seal Fuse is available now for immediate purchase. Ideal for transformer protection in industrial and commercial electrical systems.
