Mini Tank Condensate Pump | IP65 Rated | Compact Design | 35L/h Max Flow | by Aspen Pumps
The Mini Tank Condensate Pump is designed for efficient condensate removal in HVAC applications, featuring an IP65 rated water-resistant design and a maximum flow rate of 35L/h. Its compact size allows for versatile installation options, including wall, floor, or in-pan mounting, making it ideal for ducted and cassette air conditioning units. With thermal protection and easy maintenance, this pump ensures reliable performance and promotes healthier indoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mini Tank Condensate Pump | IP65 Rated | Compact Design | 35L/h Max Flow | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP1056
Alternatively Known As: Condensate Pump, Mini Condensate Pump, HVAC Condensate Removal Pump, Compact Condensate Pump
Technical Specifications
- Max flow rate: 35L/h at 0 head
- Max recommended head: 15m
- Tank capacity: 0.24L
- Noise level: 35 dB(A) at 1m
- Power supply: 230 VAC, 0.1A, 16W, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C (104°F)
- Inlet sizes: 22mm, 12mm, and 27mm
- Outlet sizes: 6mm and 10mm
- IP rating: IP65
- Safety switch: 3.0A normally closed
- Thermal protection included
- Fully potted motor for durability
- Dimensions (H x L x W): 120mm x 180mm x 150mm
- Weight: 1.2 kg
Key Features
- IP65 rated water resistant design

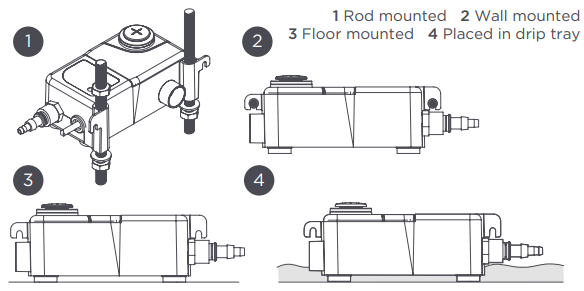

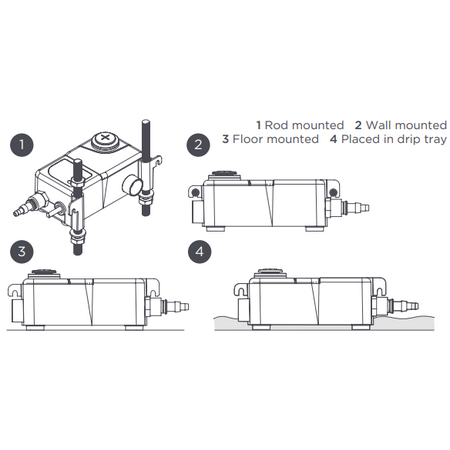

- Four installation options: wall mount, floor mount, in-pan, or suspended on M8/M10 rod
- Compact and discreet size
- Can be located inside drain pans
- Easy maintenance
- Includes anti-siphon device and fixing kit
- Thermal protection and fully potted for durability
- Safety switch rated at 3.0A normally closed
Professional Installation Requirements
- Professional installation by a qualified HVAC technician or electrician is recommended to ensure correct mounting, electrical connection, and compliance with safety standards.
Applications
- Ducted air conditioning units
- Cassette air conditioning units
- Versatile installation locations including wall, floor, in-pan, or suspended
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments
- Energy-efficient motor reduces power consumption
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Mini Tank Condensate Removal Pump is available now for immediate purchase. Ideal for HVAC applications requiring versatile and reliable condensate removal.
