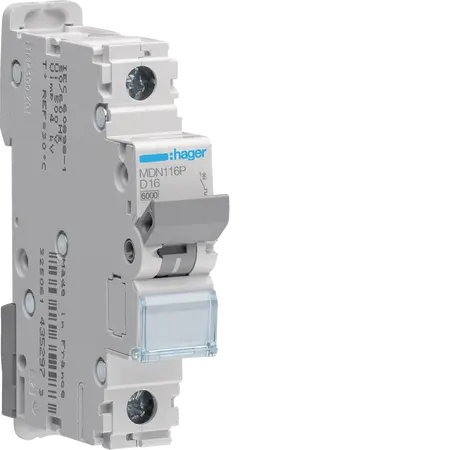

Miniature Circuit Breaker 1P 16A 6kA D Curve IP20 Hager

BRAND: :hager
SKU: MDN116P
$53.00 List price: $66.00
+ −
30 Days Return Electricians Unlock Trade Access
Hager Miniature Circuit Breaker 1P 16A features 6kA breaking capacity, D-curve tripping and IP20 protection. Suited to domestic and commercial switchboards.
Technical Specifications
  • Rated short-circuit breaking capacity: 6 kA
  • Rated operational voltage: 240-415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4000 V
  • Frequency: 50-60 Hz
  • Nominal tightening torque: 2.80 Nm
  • Cross-section of input and output conductors: 1-35 mm² for massive, 1-25 mm² for flexible
  • Dimensions (H x L x W): 85mm x 70mm x 18mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 16A with a breaking capacity of 6kA.
  • Wide operational temperature range from -25°C to 70°C.
  • IP20 ingress protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 60898 for circuit protection devices.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 6kA D-16A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

Data Sheet (MDN116P, 124 Kb) [Download]

Certificate (PEP_Hager_HAGE-00607-V01.03-EN_06022024.pdf, 377 Kb) [Download]

Certificate (reach_declaration_MDN116P3.pdf, 103 Kb) [Download]

Certificate (rohs_declaration_MDN116P3.pdf, 104 Kb) [Download]

Data Sheet (MDN116P.webp, 236 Kb) [Download]

Certificate (DECLARATION_24_3601_10_24.pdf, 537 Kb) [Download]

Certificate (DECLARATION_24_3593_10_24.pdf, 542 Kb) [Download]
