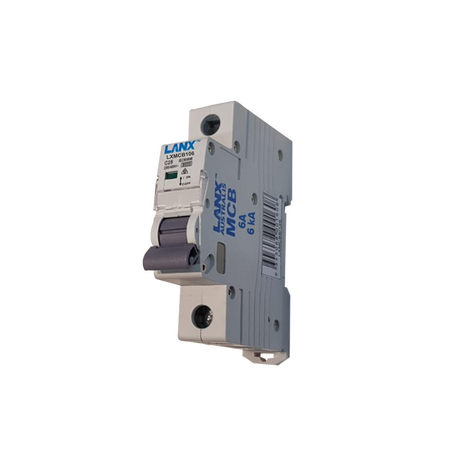

Miniature Circuit Breaker 1P 6A 6kA C Curve IP20 415V LANX
The Miniature Circuit Breaker 1P 6A 6kA C Curve IP20 415V LANX provides single pole protection for residential, commercial and industrial electrical systems. It features a 6A rated current, 240/415V working voltage, 6kA short-circuit breaking capacity and C Curve tripping. The MCB has IP20 protection, front wiring, connection capacity up to 16mm² and dimensions of 85mm x 70mm x 18mm, with AS/NZS 3000 compliance. See the technical specifications below for installation and application details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of Poles: 1P
- Rated Current: 6A
- Rated Working Voltage: 240/415V
- Rated Frequency: 50/60Hz
- Curve Types Available: B, C, D
- High Short-Circuit Breaking Capacity: 6000A (6kA)
- Instantaneous Tripping Current: 5In (B type), 10In (C type), 20In (D type)
- Instantaneous Non-Tripping Current: 3In (B type), 5In (C type), 10In (D type)
- Mechanical Life: 4000 operations
- Degree of Protection: IP20
- Wiring Mode: Front wiring
- Connecting Conductor Size: Up to 16mm²
- Wiring Height: 21.5mm
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Fine and unique appearance
- Short circuit and overload dual-protection performance
- High-breaking capacity (6kA) suitable for demanding applications
- Unique label with transparent window for easy identification
- Convenient and reliable front wiring installation mode
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety standards and proper operation.
Applications
- Residential electrical distribution panels
- Commercial electrical installations
- Industrial control panels for overload and short circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard 1 year warranty against manufacturing defects.
Available Now
The Single Phase Circuit Breaker 6A with 6kA C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
FAQ
Q: What is the breaking capacity of the LANX Miniature Circuit Breaker 1P 6A?
A: The MCB has a high short-circuit breaking capacity of 6000A (6kA).
Q: What applications is the LANX 1P 6A MCB suitable for?
A: It is suitable for residential electrical distribution panels, commercial electrical installations and industrial control panels for overload and short-circuit protection.
