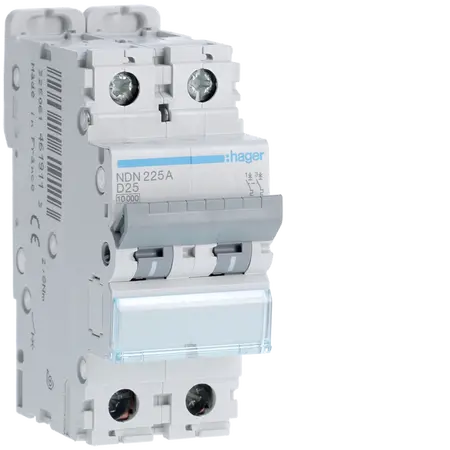

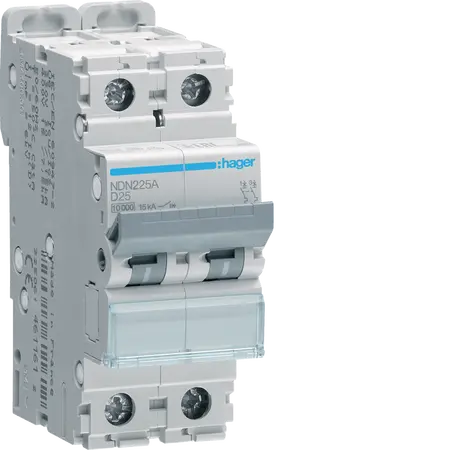

Miniature Circuit Breaker 2P 25A 10kA DIN Rail 400V Hager
Hager Miniature Circuit Breaker 2P 25A features 10kA breaking capacity, 400V rated. Suited to domestic and commercial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated ultimate short-circuit breaking capacity Icu under 400 V AC: 15 kA
- Rated short-circuit breaking capacity Icn AC according to IEC 60898-1: 10 kA
- Rated operational voltage Ue: 400 V
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6000 V
- Operating temperature: -25 to 70 °C
- Total power loss under IN: 7.20 W
- Electrical endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Dimensions (H x L x W): 83mm x 70mm x 35mm
- Weight: 0.5 kg
Key Features
- Rated current of 25 A with a short-circuit breaking capacity of 15 kA.
- Compact design with 2 modules for easy installation on DIN rails.
- IP20 ingress protection for safe operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and electrical installations
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 2P 10kA/15kA D-25A 2M is available now for immediate purchase. Ideal for residential and commercial electrical systems.
