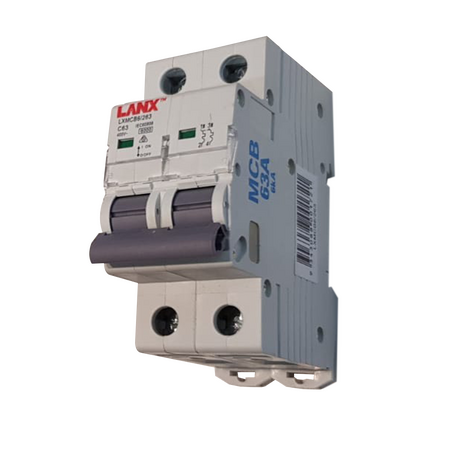

Miniature Circuit Breaker 2P 63A 6kA C Curve 400VAC LANX
The Miniature Circuit Breaker 2P 63A 6kA C Curve 400VAC LANX provides double pole protection for residential, commercial and industrial electrical systems. It features a 63A rated current, 6kA breaking capacity, C Curve tripping and 230/400V AC voltage rating. The MCB complies with IEC 60898 and AS/NZS 3000 Wiring Rules, with dimensions of 80mm x 70mm x 36mm. See the technical specifications below for application and installation details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Miniature Circuit Breaker (MCB)
- Poles: 2 (Double Pole)
- Rated Current: 63A
- Breaking Capacity: 6kA
- Tripping Curve: C Curve
- Voltage Rating: 230/400V AC
- Standards Compliance: IEC 60898
- Dimensions (H x L x W): 80mm x 70mm x 36mm
- Weight: 0.2 kg
Key Features
- Double pole miniature circuit breaker
- Rated current: 63 Amps
- Breaking capacity: 6kA
- C curve tripping characteristic for general use
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution
- Commercial electrical panels
- Industrial electrical protection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Enhances energy safety and efficiency in electrical installations
Warranty Information
Satisfaction guaranteed with full refund if not completely satisfied. Standard manufacturer warranty applies.
Available Now
The LANX Two Phase Circuit Breaker 63A is available now for immediate purchase. Ideal for electrical protection in residential, commercial, and industrial electrical panels.
FAQ
Q: What are the key specifications of the LANX Miniature Circuit Breaker 2P 63A?
A: It has a 63A rated current, 6kA breaking capacity, double pole configuration, C Curve tripping and 230/400V AC voltage rating.
Q: What standards does the LANX 2P 63A MCB comply with?
A: The MCB complies with IEC 60898 and AS/NZS 3000 Wiring Rules for electrical installation.
For 50A two-pole circuit protection, consider a miniature circuit breaker 2P 50A with 6kA C Curve protection.
A miniature circuit breaker 2P 40A provides another double pole circuit protection option with C Curve tripping.
For single pole circuit protection, use a miniature circuit breaker 1P 63A with 6kA C Curve protection.
