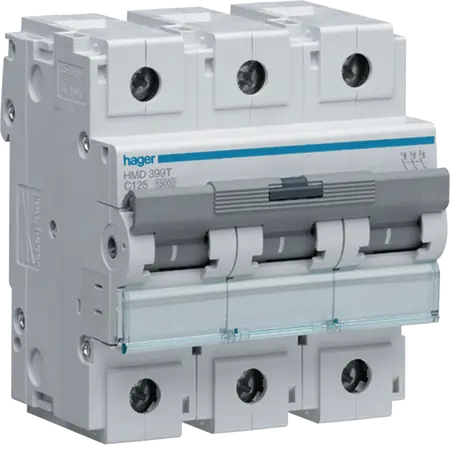

Miniature Circuit Breaker 3P 125A 15kA 415V Hager

BRAND: :hager
SKU: HMD399T
$815.00 List price: $1,015.60
+ −
30 Days Return Electricians Unlock Trade Access
Hager Miniature Circuit Breaker 3P 125A features 15kA breaking capacity, 415V rated. Suited to domestic and commercial switchboards.
Technical Specifications
  • Rated operational voltage: 415 V
  • Rated current: 125 A
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50 - 60 Hz
  • Total power loss under IN: 34.93 W
  • Electric endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Cross-section for massive conductors: 1 - 70 mm²
  • Cross-section for flexible conductors: 1 - 50 mm²
  • Dimensions (H x L x W): 90mm x 70mm x 80mm
  • Weight: 0.5 kg
Key Features
  • 3-pole design for three-phase systems.
  • Rated short-circuit breaking capacity of 15 kA.
  • Nominal tightening torque for secure connections.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 3P 15kA D-125A 4.5M is available now for immediate purchase. Ideal for residential and commercial electrical systems.

Data Sheet (HMD399T, 184 Kb) [Download]

Certificate (PEP_HAGE-00928-V02.01-EN.pdf, 40,154 Kb) [Download]

Certificate (reach_declaration_HMD399T5.pdf, 103 Kb) [Download]

Certificate (rohs_declaration_HMD399T5.pdf, 104 Kb) [Download]

Data Sheet (HMD399T.webp, 348 Kb) [Download]

Certificate (DECLARATION_21_2310_07_21.pdf, 101 Kb) [Download]

Certificate (DECLARATION_23_2310_05_23.pdf, 455 Kb) [Download]
