Trade Discount 33%

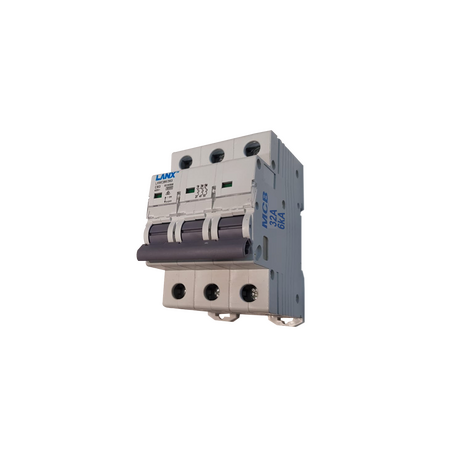

Miniature Circuit Breaker 3P 32A 6kA C Curve LANX
Rated at 32A with 3 poles and 6kA breaking capacity, this Miniature Circuit Breaker provides C curve protection for electrical systems. The unit measures 85mm x 70mm x 54mm and weighs 0.5kg. Applications include industrial electrical panels, commercial power distribution and residential three-phase electrical systems, with AS/NZS 3000 compliance shown on the page. Review the technical specifications and installation requirements below before ordering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 32A
- Number of Poles: 3
- Breaking Capacity: 6kA
- Trip Curve: C Curve
- Type: Miniature Circuit Breaker (MCB)
- Dimensions (H x L x W): 85mm x 70mm x 54mm
- Weight: 0.5 kg
Key Features
- Three pole miniature circuit breaker
- 32 Ampere current rating
- 6kA breaking capacity
- C curve trip characteristic for general use
Professional Installation Requirements
- Installation by a licensed electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial electrical panels
- Commercial power distribution
- Residential three-phase electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Supports energy-efficient electrical system safety
Warranty Information
Satisfaction guaranteed with full refund if not completely satisfied. Standard manufacturer warranty applies.
Available Now
The LANX Three Phase Circuit Breaker 32A 3 Pole 6KA C Curve is available now for immediate purchase. Ideal for industrial, commercial, and residential three-phase electrical protection.
FAQ
Q: What are the key specifications of this LANX Miniature Circuit Breaker?
A: It is a 3-pole Miniature Circuit Breaker rated at 32A with 6kA breaking capacity and C curve tripping.
Q: Where can this Miniature Circuit Breaker be used?
A: The page lists applications including industrial electrical panels, commercial power distribution and residential three-phase electrical systems.
For other circuit protection requirements, consider a Miniature Circuit Breaker 3P 25Afor compatible electrical applications.
A Miniature Circuit Breaker 3P 40A is another option to consider when selecting circuit protection for electrical installations.
For installations requiring two-pole protection, pair this product with a Miniature Circuit Breaker 2P 32A.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
