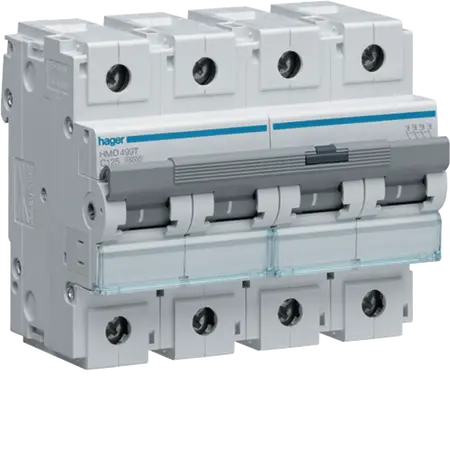

Miniature Circuit Breaker 4P 125A 15kA 415V Hager
Hager Miniature Circuit Breaker 4P 125A features 15kA breaking capacity, 415V rated. Suited to domestic and commercial switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated operational voltage: 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Rated current: 125 A
- Electric endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Cross-section for massive conductors: 1 - 70 mm²
- Cross-section for flexible conductors: 1 - 50 mm²
- Dimensions (H x L x W): 90mm x 70mm x 106mm
- Weight: 0.5 kg
Key Features
- 4-pole design for three-phase systems
- Rated short-circuit breaking capacity of 15 kA
- Nominal tightening torque of 3.5 - 5.0 Nm
- Suitable for AC voltage supply of 415 V
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and electrical installations
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 4P 15kA D-125A 6M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
