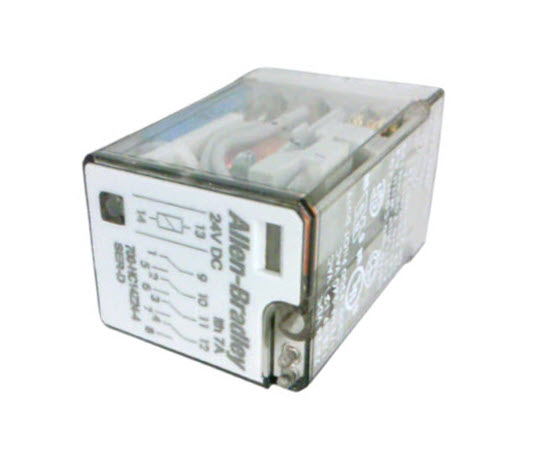

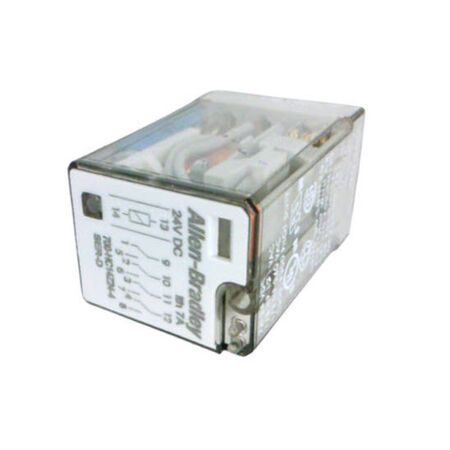

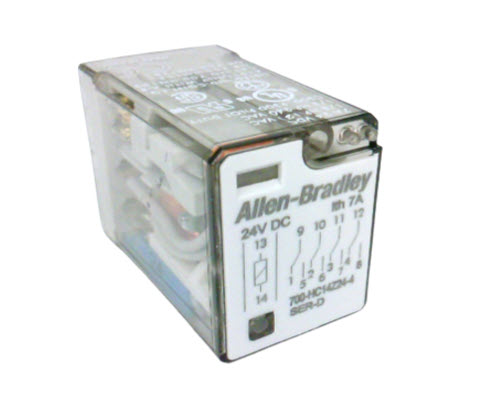

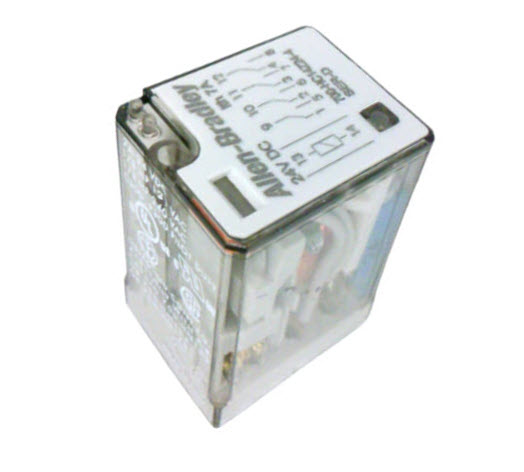

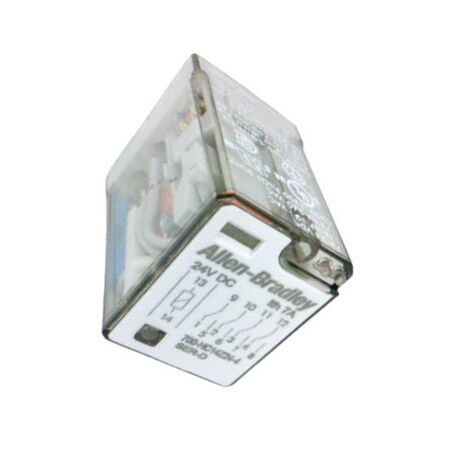

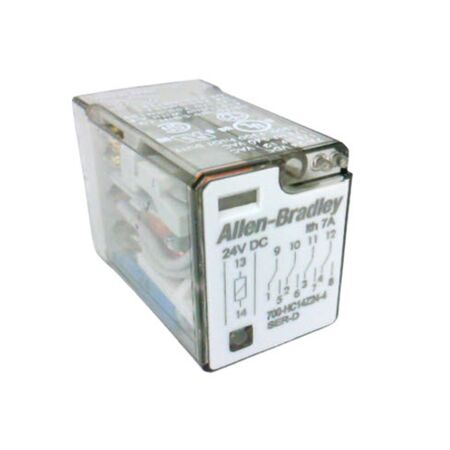

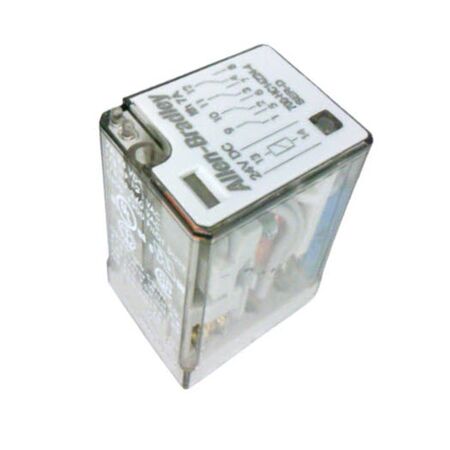

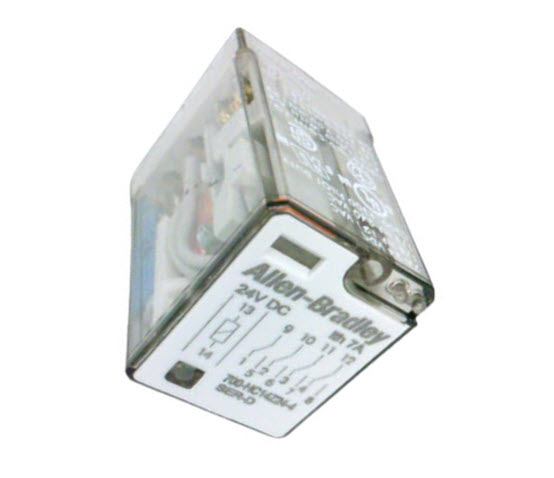

Miniature Square Base General Purpose Relay | 4PDT Configuration | 14 Blade Terminals | Pilot Light Included | by Allen-Bradley

BRAND: Allen-Bradley
SKU: 700HC14Z244
$41.80 List price: $52.10
+ −
30 Days Return Delivery Options
The Miniature Square Base General Purpose Relay is designed for reliable performance in industrial control systems and automation equipment. Featuring a 4PDT configuration and 14 blade terminals, this relay ensures secure connections and easy installation. With a built-in pilot light, it’s perfect for general electrical switching applications, making it an essential component for any electrical setup.

Product Name/Title: Allen-Bradley 700HC14Z244 Miniature Square Base General Purpose Relay

Brand: Allen-Bradley

SKU: 700HC14Z244

Alternatively Known As: Miniature Relay, 4PDT Relay, Square Base Relay, 24VDC Relay

Technical Specifications
  • Contact Configuration: 4 Pole, 4PDT
  • Terminals: 14 blade terminals
  • Current Rating: 7 Amp
  • Coil Voltage: 24 VDC
  • Frequency: 50/60 Hz
  • Includes pilot light
  • Mountable design
  • Dimensions (H x L x W): 50mm x 60mm x 45mm
  • Weight: 0.2 kg
Key Features
  • Miniature square base design
  • 4 pole, 4PDT configuration
  • 14 blade terminals for secure connections
  • Pilot light included
  • Mountable for easy installation
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Industrial control systems
  • Automation equipment
  • General electrical switching applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • Supports energy-efficient control systems
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 700HC14Z244 Miniature Square Base General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
