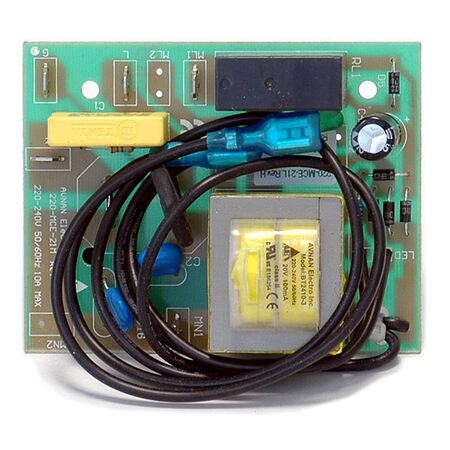

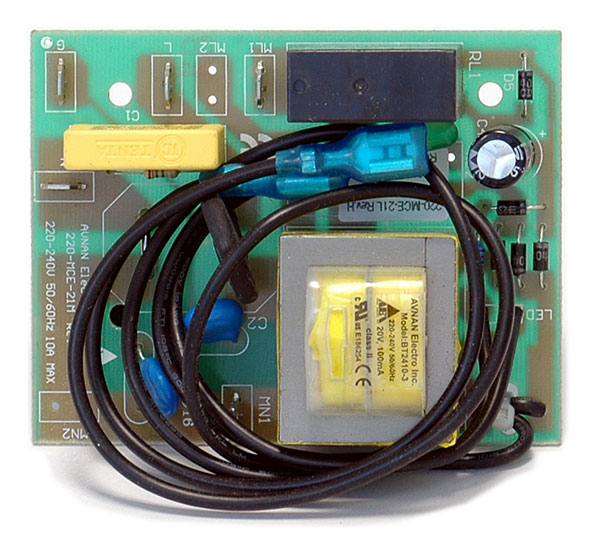

Motor Control PCB 1 Thermistor Valet
Valet motor control PCB features one thermistor. Ideal for central vacuum power units.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Valet Central Vacuum Control Board, Valet Ducted Vacuum Motor Control Board, PC240LC Control PCB, VAC-107
Technical Specifications
- Board Type: Motor control printed circuit board
- Thermistor Configuration: Single thermistor
- Part Number: VAC-107
- PCB Model: PC240LC
- Compatible Power Units: Valet VAC-001, VAC-002 and V1SH
- Function: Motor switching, temperature monitoring and thermal protection
- Installation: Replacement component for Valet central vacuum power units
- Dimensions (H x L x W): 35mm x 130mm x 80mm
- Weight: 0.15 kg
Key Features
- Single-thermistor control configuration
- Designed for selected Valet central vacuum power units
- Provides motor control and temperature monitoring
- Replacement solution for faulty or failed control boards
- Manufacturer-listed compatibility with VAC-001, VAC-002 and V1SH
Professional Installation Requirements
- Must be installed by a qualified electrician or suitably licensed service technician. Disconnect the central vacuum power unit from the mains supply before servicing.
Applications
- Repair of compatible Valet central vacuum power units
- Replacement of a failed motor control PCB
- Central vacuum motor temperature monitoring and protection
- Domestic and light-commercial ducted vacuum systems
Standards & Compliance
- Relevant system-level standard: AS/NZS 60335.2.2 for vacuum cleaners and water-suction cleaning appliances
- Electrical equipment should also meet applicable essential safety requirements under AS/NZS 3820; separate PCB certification is not stated by Valet
Environmental Benefits
- Extends the service life of compatible central vacuum power units by enabling component-level repair
- Reduces electronic waste compared with replacing the complete vacuum power unit
- Supports continued use of existing motors, housings and ducting where those components remain serviceable
Warranty Information
Valet states that central vacuum power units include a five-year parts warranty, with one additional year available when the warranty is registered. Confirm whether coverage applies to this replacement PCB when supplied separately.
Available Now
Available through Valet and authorised Australian central vacuum distributors, subject to model compatibility and current stock.
