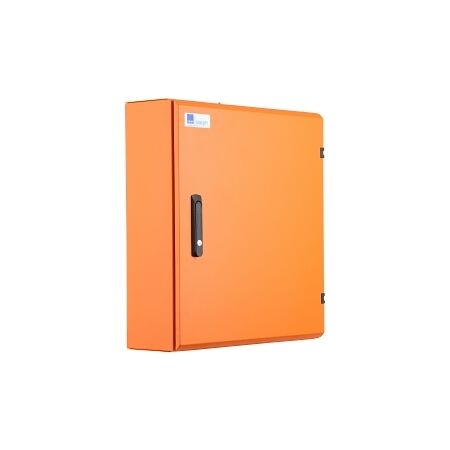

NHP Concept Plus Panelboard 648mm IP42 DIN-T 24 Way 250A NC Chassis 160A Main Switch Orange

NHP Concept Plus Panelboard 24 Way | 250A NC Chassis | IP42 Rated | Orange by NHP

BRAND: NHP

SKU: CPL24M160O

$1,135.80 List price: $1,508.20

+ −

30 Days Return Delivery Options

NHP Concept Plus panelboard with 24 outgoing ways and 250A NC chassis—ideal for commercial and industrial electrical distribution. Built for durability with IP42 protection and robust steel housing.

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard 648mm IP42 DIN-T 24 Way 250A NC Chassis 160A Main Switch Orange

Brand: NHP

SKU: CPL24M160O

Alternatively Known As: NHP Panelboard, Concept Plus Distribution Board, 24 Way Panelboard

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 24
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 6 kV
Rated Insulation Voltage: 500 V
Main Switch Rated Current: 160 A
Material Housing: Steel
Degree of Protection: IP42
Impact Strength: IK10
Mounting Method: Surface mounted (plaster)
Dimensions (H x L x W): 648mm x 200mm x 600mm
Weight: 25 kg

Key Features

24 outgoing ways for versatile electrical distribution.
IP42 rated for protection against solid objects and water.
Robust steel housing with a thickness of 1.6 mm.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Industrial facilities, commercial buildings
General: Electrical distribution in various settings

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard is available now for immediate purchase. Ideal for commercial and industrial electrical distribution.

CPL24M160O-AU-Concept-Plus-Panelboard-Datasheet.pdf (CPL24M160O-AU-Concept-Plus-Panelboard-Datasheet.pdf, 854 Kb) [Download]
