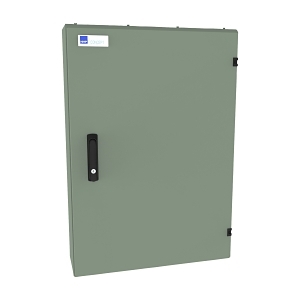

NHP Panelboard 48 Way | 250A Rated | IP42 Protection | Grey by NHP
NHP panelboard with 250A rated current and 48 outgoing ways—ideal for commercial and industrial electrical distribution. Built for durability, with IP42 protection and robust steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 864mm IP42 DIN-T 48 Way 250A NC Chassis 200A MCCB Main Switch Grey
Brand: NHP
SKU: CPL48MCCB200G
Alternatively Known As: NHP Panelboard, Concept Plus Distribution Board, 48 Way Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 48
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Main Switch Rated Current: 200 A
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 864mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 250A rated current with 48 outgoing ways.
- IP42 protection rating for dust and water resistance.
- Surface mounted design with a robust steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, commercial buildings
- General: Electrical distribution in various settings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard is available now for immediate purchase. Ideal for commercial and industrial electrical distribution needs.
Non-Returnable & Non-Cancellable
