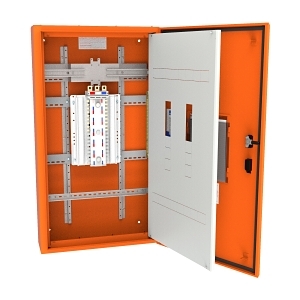

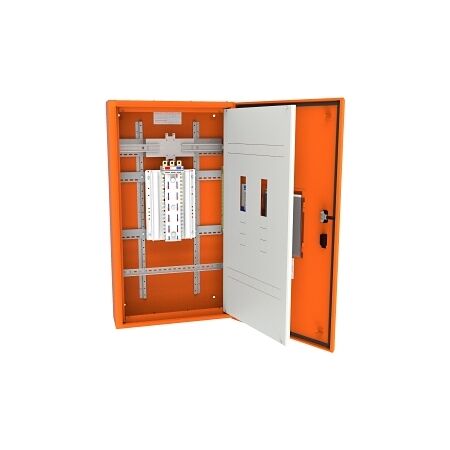

NHP Panelboard 48 Way | 250A Rated | IP42 Protection | Orange by NHP

BRAND: NHP
SKU: CPLX48O
$2,920.90 List price: $3,639.90
Free pick up (over 1 meter)
For delivery quote message
NHP panelboard with 250A rated current and 48 outgoing ways—ideal for commercial and industrial facilities. Built for robust electrical distribution, with IP42 protection and durable steel housing.

Product Name/Title: NHP Concept Plus Panelboard 1080mm IP42 DIN-T 48 Way 250A with Extra Row No Main Switch Orange

Brand: NHP

SKU: CPLX48O

Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Electrical Panel

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 48
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Spare DIN Equipment Space Poles: 42
  • Material Housing: Steel
  • Material Thickness: 1.6 mm
  • Degree of Protection: IP42
  • Impact Strength: IK10
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 1080mm x 200mm x 600mm
  • Weight: 25 kg
Key Features
  • 250A rated current with 48 outgoing ways.
  • IP42 protection rating for dust and water resistance.
  • Surface mounted design with a durable steel housing.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Industrial facilities, commercial buildings
  • General: Any location requiring a robust electrical distribution solution
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard 1080mm IP42 DIN-T 48 Way 250A with Extra Row No Main Switch Orange is available now for immediate purchase. Ideal for commercial and industrial applications.

CPLX48O-AU-Concept-Plus-Panelboard-Extra-Row-Datasheet.pdf (CPLX48O-AU-Concept-Plus-Panelboard-Extra-Row-Datasheet.pdf, 1,310 Kb) [Download]
