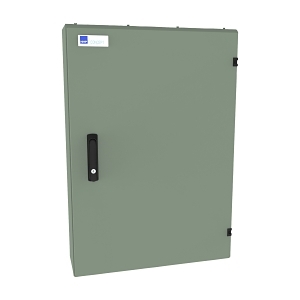

NHP Panelboard 96 Way | 250A Main Switch | IP42 Rated | Grey by NHP
NHP panelboard with 96 outgoing ways and a 250A main switch—ideal for industrial and commercial applications. Built for robust electrical distribution, with IP42 protection and durable steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 1512mm IP42 DIN-T 96 Way 250A NC Chassis 250A Main Switch Grey
Brand: NHP
SKU: CPL96M250G
Alternatively Known As: NHP Distribution Board, NHP Panelboard, NHP Electrical Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 96
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Main Switch Rated Current: 250 A
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1512mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 96 outgoing ways for extensive circuit management.
- IP42 rated for protection against solid objects larger than 1mm and limited water ingress.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1512mm IP42 DIN-T 96 Way 250A NC Chassis is available now for immediate purchase. Ideal for commercial and industrial applications.
Non-Returnable & Non-Cancellable
