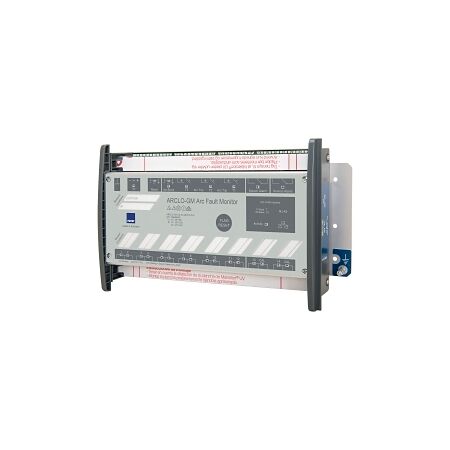

NHP Arclogix Optical GM Arc Detection Relay 14I 3O 24V DC

Optical Arc Detection Relay 14I 3O | 24V DC | Fast Trip 2.2ms | DIN Rail by NHP

BRAND: NHP

SKU: ARCLOGM14I3O24VDCPLS

$10,835.30 List price: $14,387.90

+ −

30 Days Return Delivery Options

Optical arc detection relay with 14 inputs and 3 normally open contacts—ideal for industrial and commercial safety monitoring. Built for rapid response with a 2.2ms trip duration, ensuring enhanced safety in electrical systems.

Description
Attachments

Product Name/Title: NHP Arclogix Optical GM Arc Detection Relay 14I 3O 24V DC

Brand: NHP

SKU: ARCLOGM14I3O24VDCPLS

Alternatively Known As: Arc Detection Relay, Optical Arc Relay, NHP Arc Relay

Technical Specifications

Voltage Type for Actuating: AC/DC
Rated Control Supply Voltage (US) at AC 50 Hz: 20-70 V
Rated Control Supply Voltage (US) at DC: 24-58 V
Max Flash to Trip Duration: 2.2 ms
Number of Inputs: 14
Number of Contacts as Normally Open Contact: 3
Mounting Method: DIN rail
Operating Temperature: -10-55 °C
Storage Temperature: -25-70 °C
Dimensions (H x L x W): 310mm x 64mm x 177mm
Weight: 1.5 kg

Key Features

14 inputs for comprehensive monitoring.
3 normally open contacts for reliable operation.
Fast trip duration of 2.2 ms for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Arc detection in electrical systems
Commercial: Safety monitoring in electrical installations

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances safety in electrical systems, reducing the risk of fire and equipment damage.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Arclogix Optical GM Arc Detection Relay 14I 3O 24V DC is available now for immediate purchase. Ideal for industrial and commercial applications requiring advanced arc detection.

Non-Returnable & Non-Cancellable

ARCLOGM14I3O24VDCPLS-AU-Arclogix-Optical-Datasheet.pdf (ARCLOGM14I3O24VDCPLS-AU-Arclogix-Optical-Datasheet.pdf, 816 Kb) [Download]
