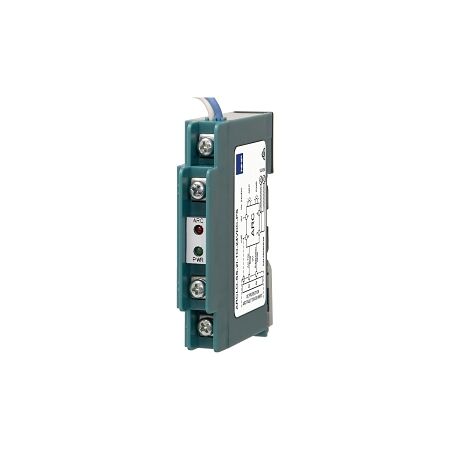

NHP Arclogix Optical SS Arc Detection Relay 2I and 1O 24V DC

Optical Arc Detection Relay 2I 1O | 24V DC | Fast 2.2ms Trip | DIN Rail by NHP

BRAND: NHP

SKU: ARCLOSS2I1O24VDCPS

$1,265.50 List price: $1,680.40

+ −

30 Days Return Delivery Options

Optical arc detection relay with 24V DC supply and fast 2.2ms trip time—ideal for industrial and commercial safety monitoring. Built for enhanced safety, with DIN rail mounting for easy installation.

Description
Attachments

Product Name/Title: NHP Arclogix Optical SS Arc Detection Relay 2I and 1O 24V DC

Brand: NHP

SKU: ARCLOSS2I1O24VDCPS

Alternatively Known As: Arc Detection Relay, Optical Arc Relay, NHP Arc Relay

Technical Specifications

Voltage Type for Actuating: DC
Rated Control Supply Voltage: 24-24 V
Max Flash to Trip Duration: 2.2 ms
Number of Inputs: 2
Number of Contacts: 1 Normally Open Contact
Operating Temperature: -10 to 55 °C
Storage Temperature: -25 to 70 °C
Dimensions (H x L x W): 82mm x 66mm x 15.5mm
Weight: 0.5 kg

Key Features

Fast trip time of 2.2 ms for enhanced safety.
Designed for DIN rail mounting.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Arc detection in electrical systems
Commercial: Safety monitoring in electrical installations

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances safety in electrical systems, reducing the risk of fire and equipment damage.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Arclogix Optical SS Arc Detection Relay 2I and 1O 24V DC is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

ARCLOSS2I1O24VDCPS-AU-Arclogix-Relay-Datasheet.pdf (ARCLOSS2I1O24VDCPS-AU-Arclogix-Relay-Datasheet.pdf, 362 Kb) [Download]
