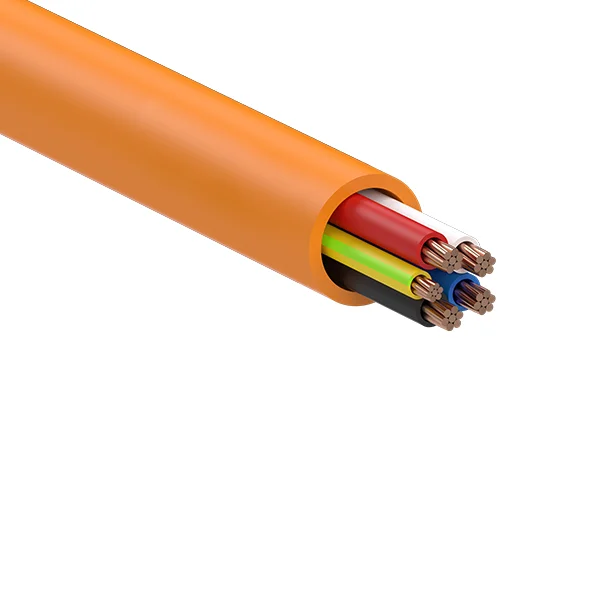

Orange Circular Cable 0.6/1kV 4C+E 2.5mm | LSZH Insulation | High Visibility | 500m Drum | Per 10m by Eltech
Orange circular cable with 0.6/1kV voltage rating and 4 cores plus earth—ideal for power distribution in residential and commercial settings. Built for safety with low smoke zero halogen insulation, ensuring reduced toxic emissions in case of fire.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Orange Circular Cable 0.6/1kV 4C+E 2.5mm – LSZH
Brand: Eltech
SKU: ELT4025E-ENV
Alternatively Known As: Orange Power Cable 2.5mm LSZH, 4 Core Earth Cable, Low Smoke Zero Halogen Power Cable
Technical Specifications
- Conductor Size: 2.5mm²
- Number of Cores: 4 cores plus earth (4C+E)
- Voltage Rating: 0.6/1kV
- Sheath Colour: Orange
- Drum Length: 500m
- Minimum Order Quantity: 10m increments
- Insulation Type: Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 0.5 kg
Key Features
- Low Smoke Zero Halogen (LSZH) insulation for enhanced fire safety
- 4 cores plus earth conductor (4C+E)
- Rated voltage: 0.6/1kV
- Bright orange sheath for high visibility
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Power distribution in residential, commercial, and industrial buildings
- Electrical installations requiring low smoke zero halogen cables
- Indoor and outdoor electrical wiring where safety and fire resistance are critical
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH insulation reduces toxic smoke and corrosive gases in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Orange Circular Cable 0.6/1kV 4C+E 2.5mm LSZH is available for immediate purchase, ideal for safe and reliable power cable installations in various settings.
