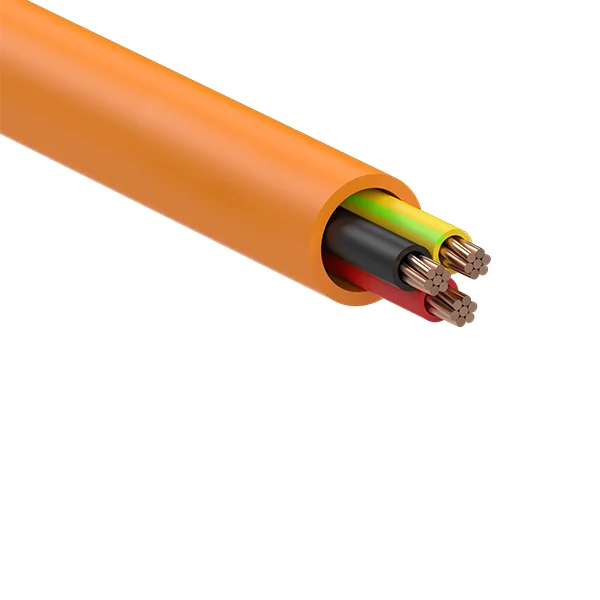

Orange Circular Power Cable 0.6/1kV 2C+E 35mm XLPE | Durable Sheath | Enhanced Thermal Performance | Per 10m by Eltech
Orange circular power cable rated at 0.6/1kV with 2 cores plus earth—ideal for industrial and commercial power distribution. Built for durability with XLPE insulation, it ensures enhanced thermal and mechanical performance for reliable electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Orange Circular Power Cable 0.6/1kV 2C+E 35mm XLPE
Brand: Eltech
SKU: ELT2350E
Alternatively Known As: Orange Power Cable 0.6/1kV, 2 Core Plus Earth Power Cable, XLPE Insulated Power Cable
Technical Specifications
- Voltage Rating: 0.6/1kV
- Conductor Size: 35mm²
- Cores: 2C+E (2 cores plus earth)
- Insulation Material: XLPE (Cross-linked Polyethylene)
- Drum Length: 500m
- Minimum Order Quantity: 10m increments
- Dimensions (H x L x W): 35mm x 500000mm x 35mm
- Weight: 3.5 kg
Key Features
- Voltage rating of 0.6/1kV suitable for medium voltage applications
- 2 cores plus earth (2C+E) configuration
- XLPE insulation for enhanced thermal and mechanical performance
- Durable orange circular sheath for easy identification
Professional Installation Requirements
- Installation must be performed by a licensed electrician following AS/NZS 3000 wiring rules to ensure safety and compliance.
Applications
- Industrial power distribution
- Commercial electrical installations
- Underground and overhead power supply
- General electrical wiring requiring 0.6/1kV rated cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- XLPE insulation improves cable longevity reducing waste
- Durable construction minimizes need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Eltech warranty policy for details.
Available Now
The Eltech Orange Circular Power Cable 0.6/1kV 2C+E 35mm XLPE is available for immediate purchase, ideal for industrial and commercial power distribution applications.
