Orange Circular Power Cable 0.6/1kV | 3C+E Configuration | XLPE Insulation | 500m Length | Per 10m by Eltech
Orange circular power cable rated at 0.6/1kV with a 3C+E configuration and XLPE insulation—ideal for industrial and commercial electrical installations. Built for medium voltage applications, it offers enhanced thermal performance and easy identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

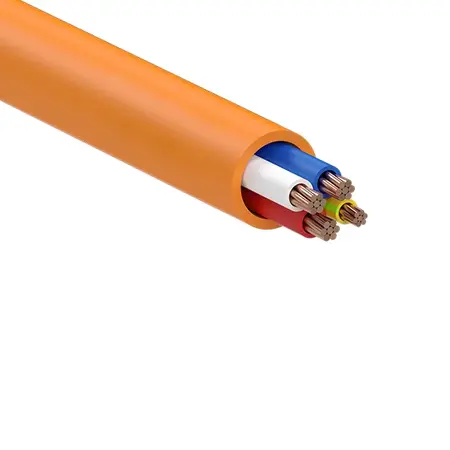

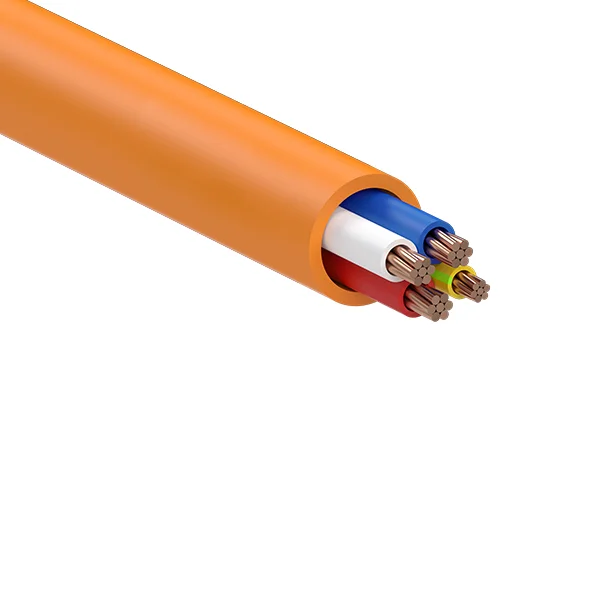

Product Name/Title: Orange Circular Power Cable 0.6/1kV 3C+E 25mm XLPE
Brand: Eltech
SKU: ELT3250E
Alternatively Known As: Orange Power Cable 25mm XLPE, 3 Core Plus Earth Power Cable, 0.6/1kV Power Cable, Medium Voltage Power Cable
Technical Specifications
- Voltage Rating: 0.6/1kV
- Conductor Size: 25mm²
- Cores: 3C+E (3 cores plus earth)
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Drum Length: 500m
- Minimum Order Quantity: 10m increments
- Dimensions (H x L x W): 25mm x 500000mm x 25mm
- Weight: 2.5 kg
Key Features
- Voltage rating of 0.6/1kV suitable for medium voltage applications
- 3 cores plus earth (3C+E) configuration
- XLPE insulation for enhanced thermal and mechanical performance
- Orange circular design for easy identification
Professional Installation Requirements
- Installation must be performed by a licensed electrician following AS/NZS 3000 Wiring Rules to ensure safety and compliance.
Applications
- Industrial power distribution
- Commercial electrical installations
- Underground and overhead power supply
- General electrical wiring requiring 0.6/1kV rated cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- XLPE insulation is more environmentally friendly compared to traditional PVC insulation due to lower toxic emissions during production and disposal
- Durable construction reduces the need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Eltech for specific warranty terms.
Available Now
The Eltech Orange Circular Power Cable 0.6/1kV 3C+E 25mm XLPE is available for immediate purchase, ideal for industrial and commercial electrical power distribution applications.
