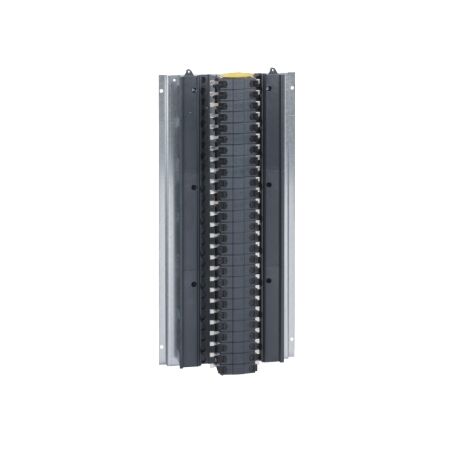

Panel Fixing Pan Assembly 18 Ways TP&N | 250A Rated | Acti9 Isobar B Compatible by Clipsal

BRAND: Clipsal
SKU: SEA9BN18TNA
$722.60 List price: $1,083.80
+
Panel fixing pan assembly with 18 ways TP&N and 250A rated current—ideal for commercial and industrial electrical installations. Built for Acti9 Isobar B distribution boards, with mounting plate for various incomer devices.

Product Name/Title: Acti9, Panel Fixing Pan Assembly, 18 ways TP&N

Brand: Clipsal

SKU: SEA9BN18TNA

Alternatively Known As: Acti9 Pan Assembly, Circuit Protection Panel, Electrical Distribution Board

Technical Specifications
  • Rated current: 250 A
  • Number of poles: 18 ways (outgoer), 1 way (incomer) - 3P + N
  • Protection device type: RCBO 45 A max, MCB 63 A max
  • Compatibility: Acti9 Isobar B distribution board
  • Dimensions (H x L x W): 90mm x 560mm x 210mm
  • Weight: 7.9 kg
Key Features
  • Designed for Acti9 Isobar B distribution boards.
  • Includes a mounting plate and supports various incomer devices.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Distribution boards in industrial and commercial settings
  • General: Electrical installations requiring reliable circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Complies with environmental regulations and contributes to sustainable practices.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Clipsal Acti9 Panel Fixing Pan Assembly is available now for immediate purchase. Ideal for commercial and industrial electrical installations.

SEA9BN18TNA (SEA9BN18TNA, 223 Kb) [Download]
