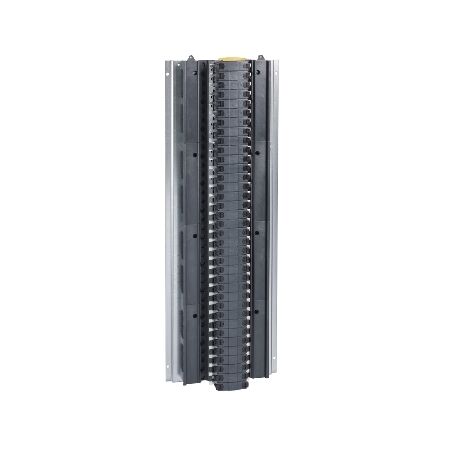

Panel Fixing Pan Assembly 24 Ways TP&N | 250A Rated | 3P+N Configuration by Clipsal

BRAND: Clipsal
SKU: SEA9BN24TNA
$994.10 List price: $1,491.20
+
Panel fixing pan assembly with 24 ways TP&N and 250A rated current—ideal for commercial and industrial electrical distribution. Built for compatibility with residual and miniature circuit breakers, ensuring robust protection.

Product Name/Title: Acti9, Panel Fixing Pan Assembly, 24 ways TP&N

Brand: Clipsal

SKU: SEA9BN24TNA

Alternatively Known As: Acti9 Isobar B, Circuit Protection Panel, Electrical Distribution Board

Technical Specifications
  • Rated current: 250A
  • Number of poles: 3P+N
  • Maximum protection device: 63A MCB
  • Busbar pitch: 18mm
  • Thickness: 2mm
  • Dimensions (H x L x W): 722mm x 90mm x 210mm
  • Weight: 9.5 kg
Key Features
  • 3P+N configuration with 250A rated current.
  • 1 way incomer with 24 ways outgoer.
  • Compatible with residual current circuit breakers and miniature circuit breakers.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Distribution boards for electrical installations
  • Industrial: Suitable for large-scale electrical systems
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Packaging made with recycled materials.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Clipsal Acti9 Panel Fixing Pan Assembly is available now for immediate purchase. Ideal for commercial and industrial electrical distribution applications.

SEA9BN24TNA (SEA9BN24TNA, 226 Kb) [Download]
