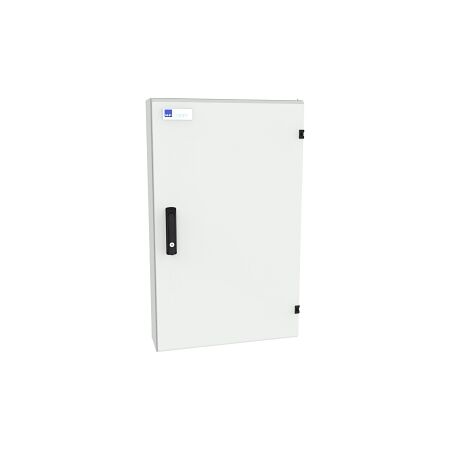

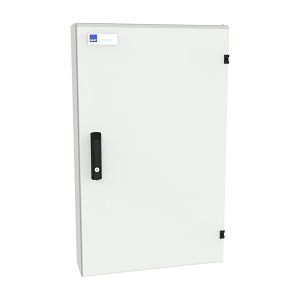

Panelboard 24 Way 160A MCCB | 648mm DIN | IP40 Rated | Light Grey by NHP
Panelboard with 24 outgoing ways and 160A MCCB—ideal for residential and commercial electrical distribution. Built for versatile circuit management, with IP40 protection and durable steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept One Panelboard 648mm DIN 24 Way 160A MCCB Mains Switch Light Grey
Brand: NHP
SKU: COE24MCCB160LG
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Small Distribution Board
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 16
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP40
- Impact Strength: IK07
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 648mm x 153mm x 530mm
- Weight: 15 kg
Key Features
- 24 outgoing ways for versatile circuit management.
- 160A rated main switch with circuit breaker functionality.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 648mm DIN 24 Way 160A MCCB Mains Switch Light Grey is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
