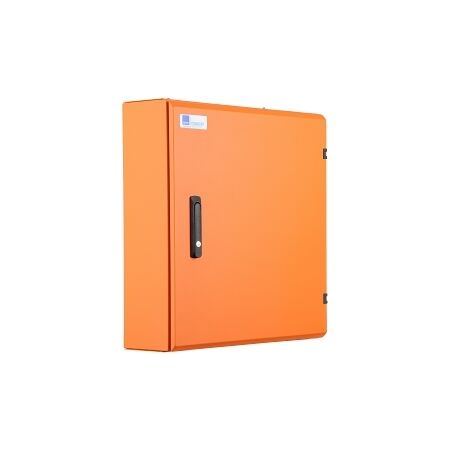

Panelboard 24 Way 250A | IP42 Rated | Surface Mounted | Orange by NHP
Panelboard with 24 outgoing ways and 250A rated current—ideal for residential and commercial electrical distribution. Built for robust performance, with IP42 protection and easy surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 648mm IP42 DIN-T 24 Way 250A NC Chassis No Main Switch Orange
Brand: NHP
SKU: CPL24O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 24
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 648mm x 200mm x 600mm
- Weight: 15 kg
Key Features
- 24 outgoing ways for versatile circuit management.
- Rated current of 250 A for robust performance.
- IP42 rating for protection against solid objects and limited water ingress.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Retail spaces, offices, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable steel housing reduces waste and extends product life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 648mm IP42 DIN-T 24 Way 250A is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
