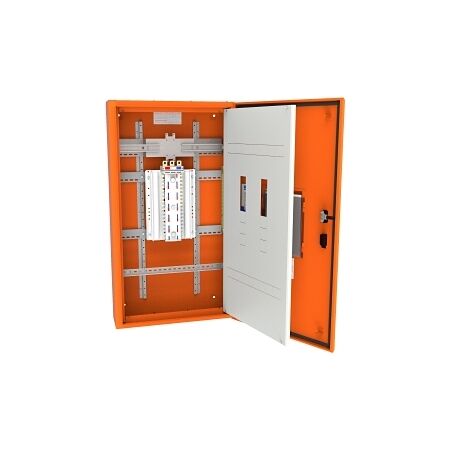

Panelboard 30 Way 250A | IP42 Rated | Surface Mounted | Orange by NHP
Panelboard with 30 outgoing ways and 250A rated current—ideal for residential and commercial electrical distribution. Built for versatile circuit management, with IP42 protection and easy surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 864mm IP42 DIN-T 30 Way 250A with Extra Row No Main Switch Orange
Brand: NHP
SKU: CPLX30O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 30
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 42
- DIN Rail: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 864mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 30 outgoing ways for versatile circuit management.
- IP42 rated for protection against solid objects and limited water ingress.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Retail spaces, offices, and industrial applications
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable steel housing reduces waste and extends product life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 864mm IP42 DIN-T 30 Way 250A is available now for immediate purchase. Ideal for residential and commercial electrical distribution.
