Panelboard 400A 30 Way | IP66 Rated | Surface Mounted | Grey by NHP
Panelboard with 400A main switch and 30 way chassis—ideal for commercial and industrial electrical distribution. Built for high capacity, with IP66 protection and surface mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

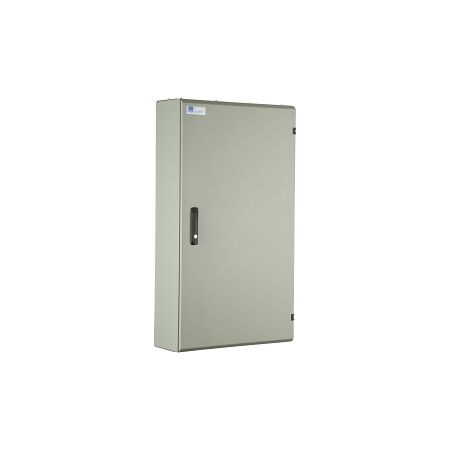

Product Name/Title: NHP Concept Premier Panelboard 400A 1080mm DIN-T 12 30 Way Chassis 400A Main Switch Grey
Brand: NHP
SKU: CPRH1230M400G
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, 400A Panelboard
Technical Specifications
- Rated Current: 400 A
- Number of Outgoing Ways: 42
- Number of Poles (18mm pitch): 30
- Number of Poles (27mm pitch): 12
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 400 A
- Earthing Terminal Block: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1080mm x 240mm x 600mm
- Weight: 25 kg
Key Features
- 400A main switch for high capacity electrical distribution.
- IP66 rated for protection against dust and water ingress.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings
- General: Electrical distribution in various settings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 400A 1080mm DIN-T 12 30 Way Chassis is available now for immediate purchase. Ideal for commercial and industrial electrical distribution.
