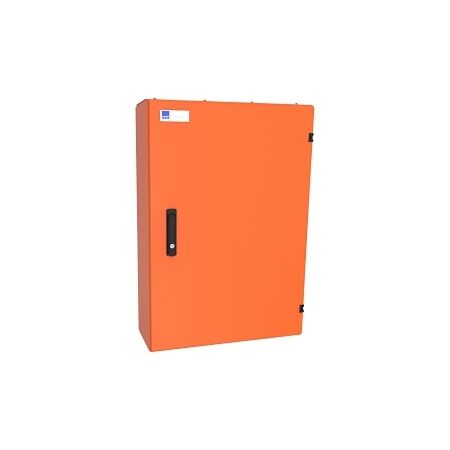

Panelboard 400A 48 Way | IP66 Rated | Surface Mounted | Orange by NHP
Panelboard with 400A main switch and 48 outgoing ways—ideal for commercial and residential electrical distribution. Built for high current applications, with IP66 protection and surface mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Premier Panelboard 400A 1080mm DIN-T 48 Way Chassis 400A Main Switch Orange
Brand: NHP
SKU: CPRH48M400O
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, 400A Panelboard
Technical Specifications
- Rated Current: 400 A
- Number of Outgoing Ways: 48
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 400 A
- Earthing Terminal Block: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1080mm x 240mm x 600mm
- Weight: 30 kg
Key Features
- 400A main switch for high current applications.
- 48 outgoing ways for extensive circuit management.
- IP66 rated for protection against dust and water ingress.
- IK10 impact strength for enhanced durability.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: High-demand residential applications requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 400A 48 Way Chassis is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
