Panelboard 48 Way 160A MCCB | 864mm DIN | IP40 Rated | Light Grey by NHP
Panelboard with 48 outgoing ways and 160A MCCB—ideal for industrial and commercial facilities. Built for robust electrical distribution, with IP40 protection and durable steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

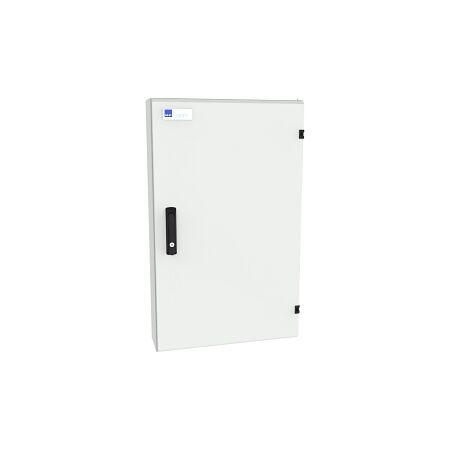

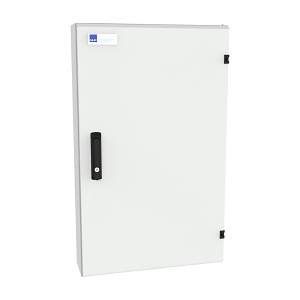

Product Name/Title: NHP Concept One Panelboard 864mm DIN 48 Way 160A MCCB Mains Switch Light Grey
Brand: NHP
SKU: COE48MCCB160LG
Alternatively Known As: NHP Panelboard, Concept One Distribution Board, 48 Way MCCB Panel
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP40
- Impact Strength: IK07
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 864mm x 153mm x 530mm
- Weight: 25 kg
Key Features
- 48 outgoing ways for extensive circuit management.
- Rated current of 160A with a 3-pole main switch.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, office buildings, and large retail spaces
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 864mm DIN 48 Way 160A MCCB Mains Switch Light Grey is available now for immediate purchase. Ideal for commercial and industrial applications.
