Panelboard 48 Way 250A | IP42 Rated | Surface Mounted | Orange by NHP
Panelboard with 48 outgoing ways and 250A rated current—ideal for industrial and commercial facilities. Built for robust electrical distribution, with IP42 protection and easy surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

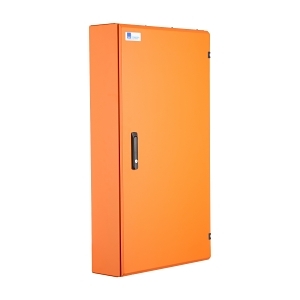

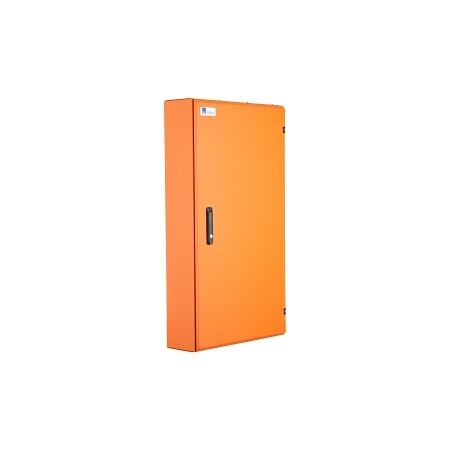

Product Name/Title: NHP Concept Plus Panelboard 864mm IP42 DIN-T 48 Way 250A NC Chassis 250A Main Switch Orange
Brand: NHP
SKU: CPL48M250O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Electrical Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 48
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 864mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 48 outgoing ways for extensive circuit management.
- IP42 rated for protection against solid objects and water.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, commercial buildings
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 864mm IP42 DIN-T 48 Way 250A NC Chassis is available now for immediate purchase. Ideal for commercial and industrial applications.
Non-Returnable & Non-Cancellable
