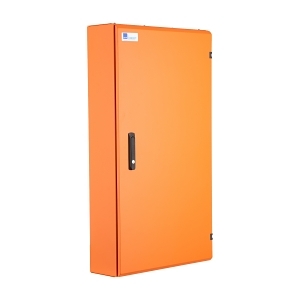

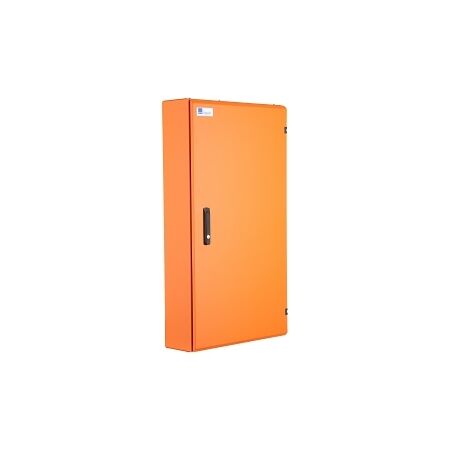

Panelboard 60 Way 250A | IP42 Rated | Surface Mounted | Orange by NHP
Panelboard with 250A rated current and 60 outgoing ways—ideal for industrial and commercial facilities. Built for robust electrical distribution, with IP42 protection and durable steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis No Main Switch Orange
Brand: NHP
SKU: CPL60O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 60
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1080mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 250A rated current with 60 outgoing ways.
- IP42 protection rating for dust and water resistance.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, office buildings, and large retail spaces
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis No Main Switch Orange is available now for immediate purchase. Ideal for commercial and industrial applications.
