Trade Discount 25%
Panelboard 60 Way | 250A NC Chassis | IP42 Surface Mount | Grey by NHP
Panelboard with 60 outgoing ways and 250A NC chassis—ideal for industrial and commercial facilities. Built for robust electrical distribution, with IP42 protection and surface mount design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

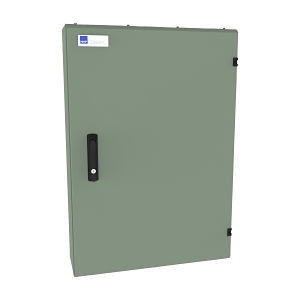

Product Name/Title: NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis 160A Main Switch Grey
Brand: NHP
SKU: CPL60M160G
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Electrical Distribution Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 60
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Main Switch Rated Current: 160 A
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1080mm x 200mm x 600mm
- Weight: 30 kg
Key Features
- 60 outgoing ways for extensive circuit management.
- IP42 rated for protection against solid objects greater than 1mm and limited water ingress.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, office buildings, and large retail spaces
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis 160A Main Switch Grey is available now for immediate purchase. Ideal for commercial and industrial applications.
