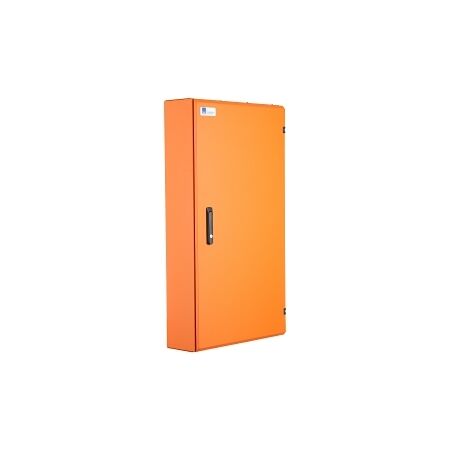

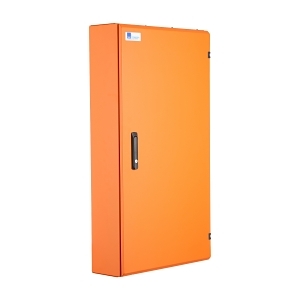

Panelboard 72 Way 250A | 1296mm IP42 | Surface Mounted | Orange by NHP
Panelboard with 72 outgoing ways and 250A main switch—ideal for industrial and commercial applications. Built for extensive circuit management, with IP42 protection and surface mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 1296mm IP42 DIN-T 72 Way 250A NC Chassis 250A Main Switch Orange
Brand: NHP
SKU: CPL72M250O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Electrical Distribution Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 72
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1296mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 72 outgoing ways for extensive circuit management.
- 250A main switch for high capacity.
- IP42 rating for protection against solid objects and limited water ingress.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any application requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1296mm IP42 DIN-T 72 Way 250A NC Chassis is available now for immediate purchase. Ideal for commercial and industrial applications.
Non-Returnable & Non-Cancellable
