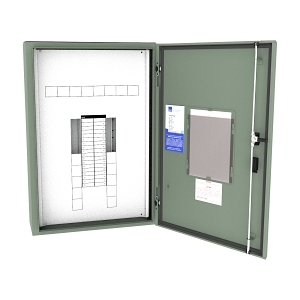

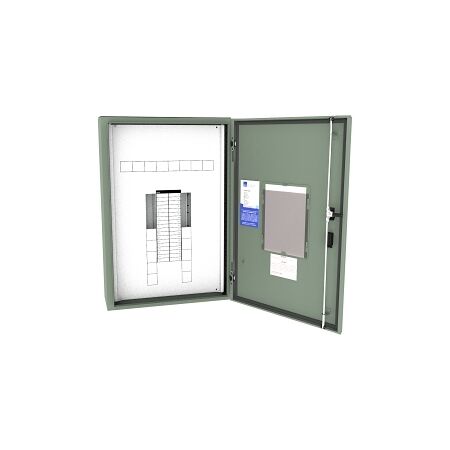

Panelboard 72 Way | 250A Main Switch | IP66 Rated | Grey by NHP
Panelboard with 72 outgoing ways and 250A main switch—ideal for industrial and commercial electrical distribution. Built for durability with IP66 protection, ensuring safety in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Premier Panelboard 1296mm IP66 DIN-T 72 Way 250A 250A Main Switch Grey
Brand: NHP
SKU: CPR72M250G
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, 72 Way Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 72
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1296mm x 240mm x 600mm
- Weight: 50 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- 72 outgoing ways for extensive electrical distribution.
- 250A main switch for high current applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 1296mm IP66 DIN-T 72 Way 250A Main Switch Grey is available now for immediate purchase. Ideal for commercial and industrial applications.
Non-Returnable & Non-Cancellable
