Panelboard 84 Way 250A | IP66 Rated | 160A Main Switch | Orange by NHP
Panelboard with 84 outgoing ways and 250A rated current—ideal for industrial and large residential electrical distribution. Built for durability with IP66 protection and robust steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

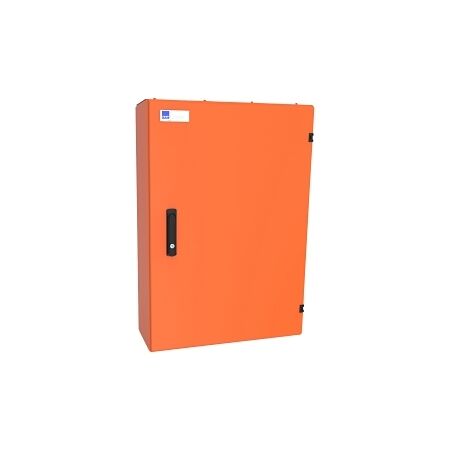

Product Name/Title: NHP Concept Premier Panelboard 1296mm IP66 DIN-T 84 Way 250A 160A Main Switch Orange
Brand: NHP
SKU: CPR84M160O
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, DIN Rail Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Main Switch Rated Current: 160 A
- Material Housing: Steel
- Degree of Protection: IP66
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1296mm x 240mm x 600mm
- Weight: 50 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- 84 outgoing ways for extensive electrical distribution.
- Robust steel housing with a thickness of 1.6 mm.
Professional Installation Requirements
- Professional installation by a licensed electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: Large homes requiring robust electrical distribution
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 1296mm IP66 DIN-T 84 Way 250A 160A Main Switch Orange is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
Non-Returnable & Non-Cancellable
