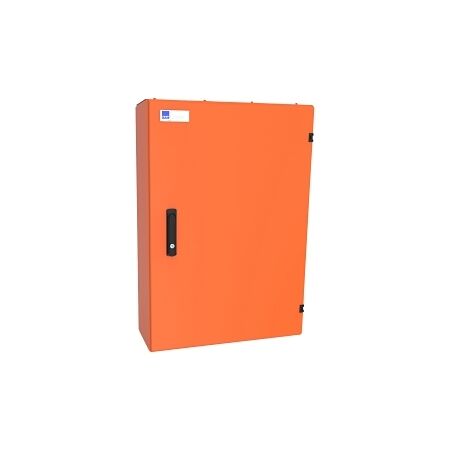

Panelboard 84 Way 250A | IP66 Rated | Surface Mounted | Orange by NHP
Panelboard with 84 outgoing ways and 250A main switch—ideal for commercial and residential electrical distribution. Built for durability with IP66 rating and steel housing, featuring surface mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Premier Panelboard 1296mm IP66 DIN-T 84 Way 250A 250A Main Switch Orange
Brand: NHP
SKU: CPR84M250O
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, DIN Rail Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 250 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Material Housing: Steel
- Impact Strength: IK10
- Type of Cover: Door
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1296mm x 240mm x 600mm
- Weight: 50 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- 84 outgoing ways for extensive electrical distribution.
- 250A main switch for high current applications.
- Steel housing with a thickness of 1.6 mm for durability.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: High-demand residential applications requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 1296mm IP66 DIN-T 84 Way 250A is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
