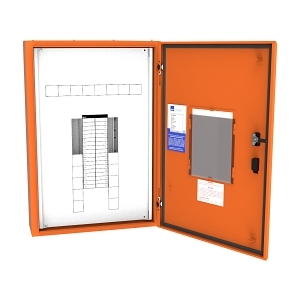

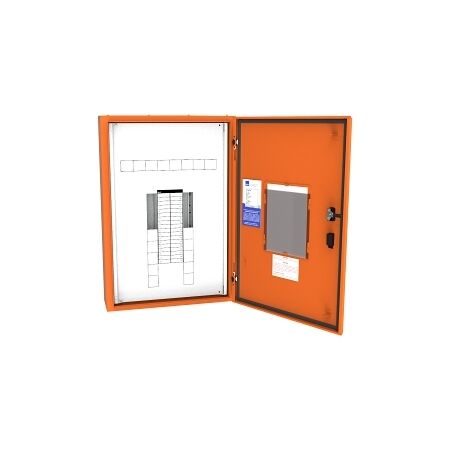

Panelboard Isolation Chassis 96 Way | 1512mm IP42 | Surface Mounted by NHP
Panelboard isolation chassis with 96 outgoing ways and IP42 rating—ideal for industrial and commercial electrical distribution. Built for durability with steel construction and surface-mounted design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard Isolation Chassis 1512mm IP42 DIN-T 96 Way GB Chassis No MSW Orange
Brand: NHP
SKU: CPLG96O
Alternatively Known As: NHP Panelboard, Isolation Chassis, Electrical Distribution Board
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1512mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 96 outgoing ways for extensive circuit management.
- IP42 rating for protection against solid objects and limited water ingress.
- Constructed from durable steel with a thickness of 1.6 mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any application requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard Isolation Chassis is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable electrical distribution.
