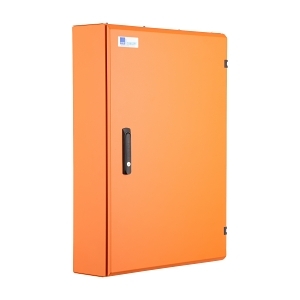

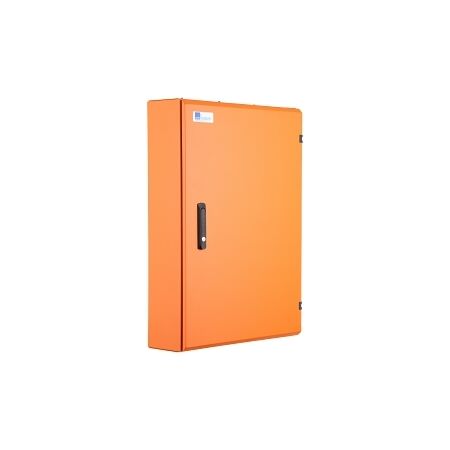

Panelboard Metering 36 Way | 250A Main Switch | IP42 Rated | Orange by NHP
Panelboard metering with 36 outgoing ways and 250A main switch—ideal for commercial and industrial facilities. Built for efficient energy monitoring, with surface-mounted design and durable steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard Metering 864mm IP42 Single Meter DIN-T 36 Way 250A Main Switch Orange
Brand: NHP
SKU: CPLMS36M250O
Alternatively Known As: NHP Panelboard, Concept Plus Distribution Board, Single Metering Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 36
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles: 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Impact Strength: IK10
- Degree of Protection: IP42
- Material: Steel
- Material Thickness: 1.6 mm
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 864mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- Integrated energy metering function for efficient monitoring.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, office buildings, and retail spaces
- General: Any location requiring a robust metering solution for electrical distribution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient energy metering helps in reducing energy waste and optimizing consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard Metering is available now for immediate purchase. Ideal for commercial and industrial applications, ensuring reliable electrical distribution.
