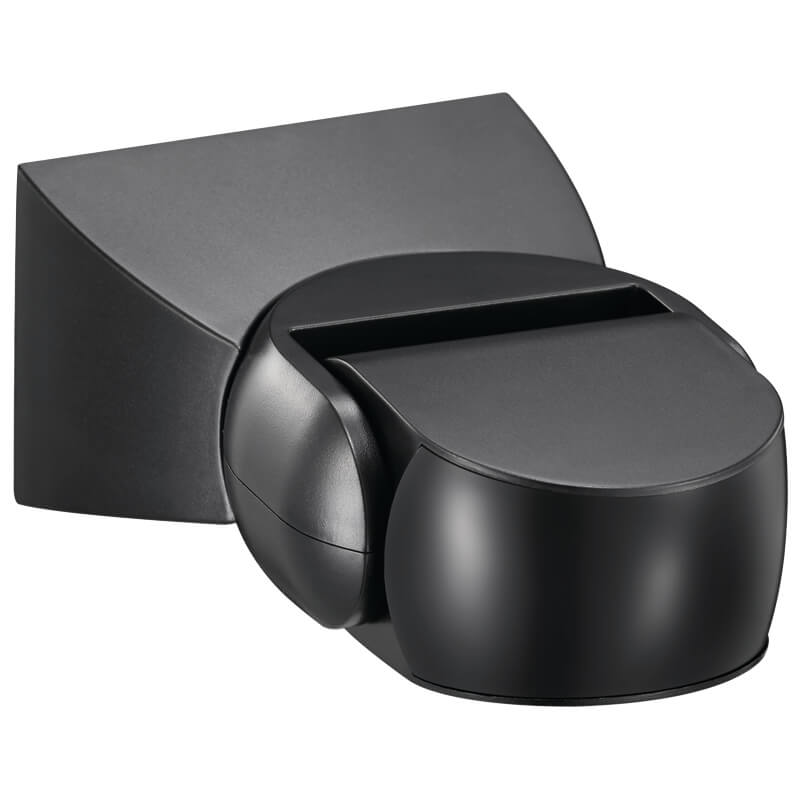

PIR Motion Sensor 180 Degree IP65 Black MajorTech

BRAND: Major Tech
SKU: PIR44B
$28.90 List price: $38.50
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech PIR motion sensor features 180 degree detection, IP65 rating and a black finish. Ideal for outdoor automatic lighting and detection.

Alternatively Known As: PIR44B, 180° PIR Presence Sensor, Outdoor PIR Motion Detector, Wall and Ceiling PIR Sensor

Technical Specifications
  • Model: PIR44B
  • Detection Area: 180°
  • Detection Distance: 12 m maximum
  • Detection Motion Speed: 0.6–1.5 m/s
  • Ambient Light Adjustment: Less than 3–2000 lux
  • Supply Voltage: 220–240 V AC
  • Power Frequency: 50/60 Hz
  • Rated Load: 1200 W incandescent; 600 W LED/CFL
  • Time Delay: 10 seconds to 15 minutes
  • Power Consumption: Less than 0.5 W
  • Mounting: Wall or ceiling mount
  • Swivel Head: 45° left-to-right; 180° up-and-down
  • Operating Temperature: -20°C to 40°C
  • Operating Humidity: Less than 93% RH
  • Ingress Protection: IP65
  • Housing Colour: Black
  • Dimensions (H x L x W): 100mm x 75mm x 55mm
  • Weight: 0.2 kg
Key Features
  • 180° passive infrared motion detection
  • 12 m maximum detection distance
  • Adjustable ambient light and time-delay settings
  • Automatically switches connected lighting or electrical loads when motion and body heat are detected
  • IP65 protection for indoor and outdoor installations
  • Adjustable sensor head for directional positioning
  • Suitable for incandescent, LED and CFL lighting loads
  • Day and night identification function
Professional Installation Requirements
  • Installation must be performed by a qualified electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000 where applicable.
Applications
  • Outdoor automatic lighting
  • Driveways, pathways and entrances
  • Building corridors and lobbies
  • Residential, commercial and office lighting control
  • Bathrooms and other indoor areas requiring automatic lighting
Standards & Compliance
  • AS/NZS 60669.1
  • AS/NZS 60669.2.1
Environmental Benefits
  • Automatic activation can reduce unnecessary lighting runtime and associated energy consumption
  • Low standby power consumption of less than 0.5 W
  • IP65-rated housing supports extended service life in suitable outdoor environments, reducing replacement waste
Warranty Information

5-year limited warranty. Warranty claims are subject to Major Tech warranty terms, proof of purchase and correct installation and use.

Available Now

Available through Major Tech and authorised Australian electrical distributors.
