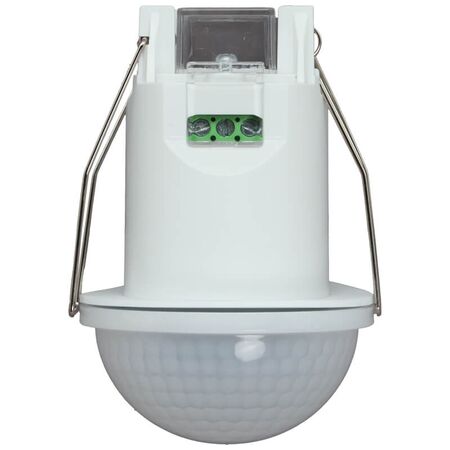

PIR Presence Motion Sensor 360 Degree IP54 MajorTech

BRAND: Major Tech
SKU: PIR42
$50.50 List price: $67.40
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech PIR sensor features 360 degree presence detection and IP54 rating. Ideal for automatic lighting and occupancy detection.

Alternatively Known As: PIR42, PIR occupancy sensor, ceiling-mount presence sensor, 360-degree motion detector

Technical Specifications
  • Model: PIR42
  • Sensor Type: Passive infrared (PIR) presence and motion sensor
  • Detection Area: 360°
  • Detection Distance: 6m presence, maximum 12m movement
  • Ambient Light Range: Less than 3 to 2000 lux, adjustable
  • Installation Height: 2.2m to 6m
  • Supply Voltage: 220–240V AC
  • Power Frequency: 50/60Hz
  • Rated Load: 1200W incandescent; 600W LED/CFL
  • Time Delay: 10 seconds to 15 minutes
  • Power Consumption: Less than 0.6W
  • Mounting: Ceiling mount
  • Cut-Out Size: 45–48mm diameter
  • Operating Temperature: -20°C to 40°C
  • Operating Humidity: Less than 93% RH
  • Ingress Protection: IP54
  • Housing Colour: White
  • Dimensions (H x L x W): 55mm x 60mm x 60mm
  • Weight: 0.12 kg
Key Features
  • 360° presence detection for occupancy sensing
  • Detects subtle movement when occupants remain relatively still
  • Automatically switches connected lighting or electrical loads when presence or motion is detected
  • Adjustable ambient light threshold from less than 3 to 2000 lux
  • Adjustable time delay for lighting control
  • Suitable for indoor and sheltered outdoor installations
  • Designed for integration into new or existing electrical installations
Professional Installation Requirements
  • Installation must be performed by a qualified electrician because the sensor connects to a 220–240V AC supply. Install in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
  • Automatic lighting control in homes, offices and commercial buildings
  • Occupancy detection in corridors, bathrooms, lobbies and meeting rooms
  • Lighting control in damp or dusty indoor environments
  • Sheltered outdoor areas requiring IP54 protection
  • Energy-efficient switching of lighting and other electrical loads
Standards & Compliance
  • AS/NZS 60669.1
  • AS 60669.2.1
  • IEC 60669-1
  • IEC 60669-2-1
Environmental Benefits
  • Reduces unnecessary lighting operation by switching connected loads when presence or motion is not detected
  • Supports lower energy consumption and reduced lamp replacement frequency through automated occupancy-based control
Warranty Information

5-year manufacturer's warranty for the sensor, subject to MajorTech warranty conditions and proof of purchase.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
