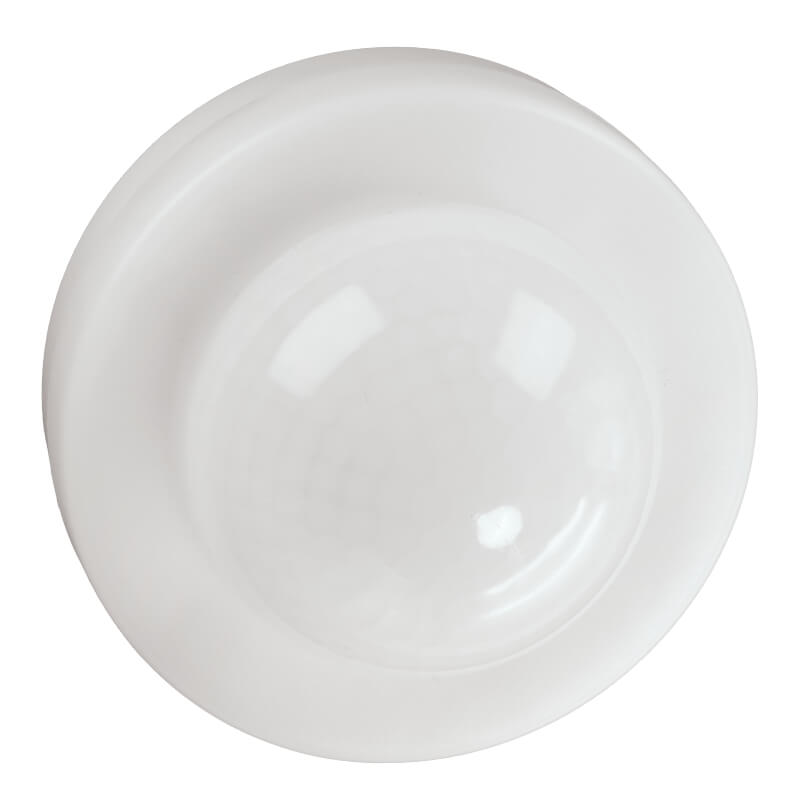

PIR Presence Motion Sensor 360 Degree MajorTech
MajorTech PIR sensor features 360 degree presence and motion detection. Ideal for automatic lighting and occupancy detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PIR42 360° PIR Presence Sensor, PIR Occupancy Sensor, Ceiling-Mount PIR Sensor
Technical Specifications
- Detection Area: 360°
- Detection Distance: 6m presence, 20m movement
- Sensor Type: Passive infrared (PIR) presence and motion sensor
- Ambient Light: Less than 3 to 2000 lux, adjustable
- Installation Height: 2.2m to 6m
- Supply Voltage: 220–240V AC
- Power Frequency: 50/60Hz
- Rated Load: 1200W incandescent lamps; 600W LED/CFL
- Time Delay: 10 seconds to 30 minutes, adjustable
- Power Consumption: Less than 0.6W
- Mounting: Ceiling mount
- Cut-Out Size: Ø45–48mm
- IP Rating: IP54
- Housing Colour: White
- Dimensions (H x L x W): 96.1mm x 62mm x 62mm
- Weight: 0.15 kg
Key Features
- 360° presence and motion detection
- Detects subtle movement to support occupancy sensing, including when a person remains relatively still
- Automatically switches connected lighting or electrical equipment within the rated load
- Adjustable ambient-light threshold and time delay
- Suitable for indoor and sheltered outdoor installations
- IP54 protection against limited dust ingress and water splashes
- Designed for integration with new or existing lighting installations
Professional Installation Requirements
- Installation and mains wiring must be performed by a qualified electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Automatic lighting control in homes, offices and commercial buildings
- Occupancy detection in corridors, bathrooms, lobbies and meeting rooms
- Lighting control in educational, retail and hospitality environments
- Indoor and sheltered outdoor areas requiring presence-based switching
Standards & Compliance
- AS/NZS 60669.1
- AS 60669.2.1
Environmental Benefits
- Reduces unnecessary lighting operation by switching connected loads only when presence or movement is detected
- Supports lower electricity consumption and reduced lamp operating hours
- Low operating power consumption of less than 0.6W
- Long 5-year warranty supports extended product service life and reduced replacement waste
Warranty Information
5-year limited warranty. Major Tech's warranty policy lists sensors under a 5-year warranty category; warranty conditions and product registration requirements apply.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
