PL 16 / 25 B2B 4P Insulator Set | 660V to 3300V | 300A to 425A | IP55 by Ausproof
The PL 16 / 25 B2B 4P Insulator and Contact Set is designed for high voltage applications, operating between 660V to 3300V with a current rating of 300A to 425A. Ideal for mining and tunnelling, this flameproof electrical connector features durable stainless steel construction and quick release for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

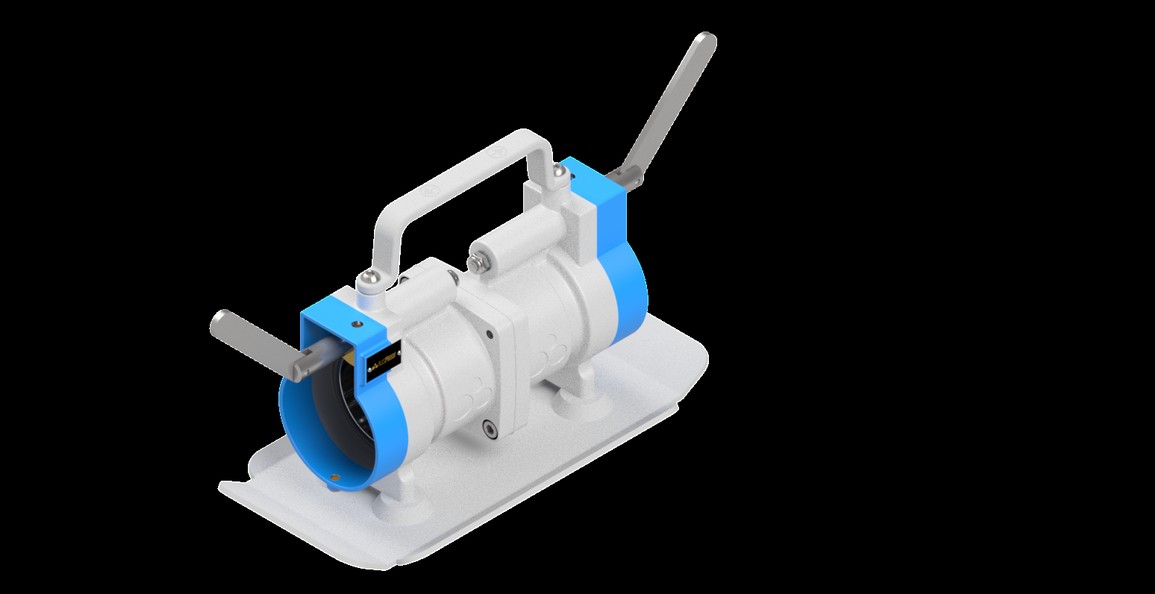

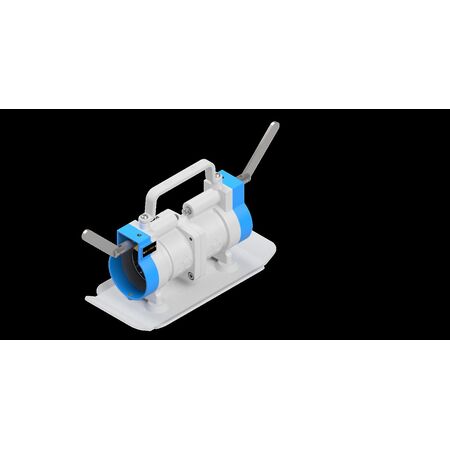

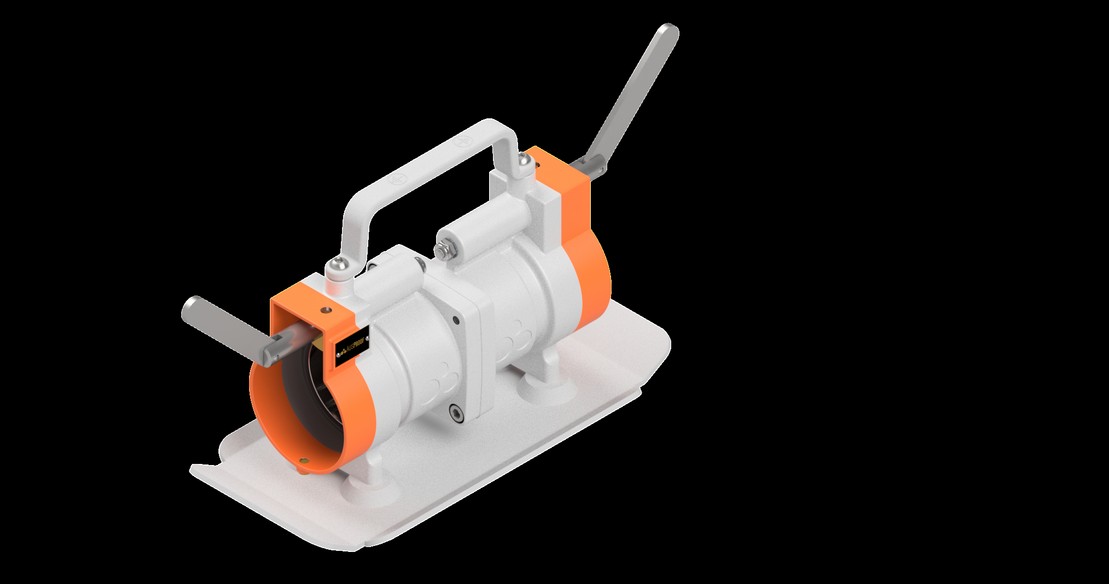

Product Name/Title: PL 16 / 25 B2B 4P Insulator and Contact Set
Brand: Ausproof
SKU: RS2452
Alternatively Known As: PL Range Insulator Set, Back-to-Back 4 Pin Contact Set, Flameproof Electrical Connector, Ex Certified Contact Set
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 400mm x 200mm x 300mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by qualified personnel trained in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 for flameproof enclosures and electrical equipment in hazardous areas.
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof design enhances safety, reducing risk of environmental hazards.
- Easy on-site repair reduces waste and resource consumption.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 16 / 25 B2B 4P Insulator and Contact Set is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
