Power Contactor 45kW 3P | 24-60VAC/20-60VDC Coil | IP20 Protection by NHP
Power contactor with 45kW operation power and 80A current—ideal for motor control and HVAC systems. Built for industrial and commercial use, with IP20 protection and efficient power management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

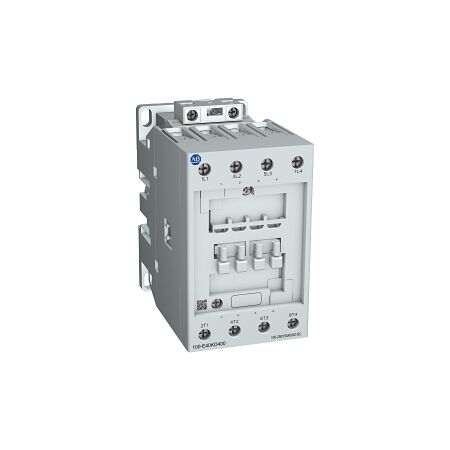

Product Name/Title: Allen-Bradley 100E Contactor 45kW 3P 24-60VAC/20-60VDC Coil Auxiliary
Brand: NHP
SKU: 100E80KJ400
Alternatively Known As: Power Contactor, AC Contactor, Motor Contactor
Technical Specifications
- Number of normally open contacts: 4
- Rated operation current at AC 400 V: 80 A
- Rated operation power at AC 400 V: 45 kW
- Max rated operation voltage: 1000 V
- Voltage type for actuating: AC/DC
- Rated control supply voltage: 24-60 V AC / 20-60 V DC
- Power consumption AC coil pickup: 40 VA
- Power consumption DC coil pickup: 40 W
- Type of electrical connection: Screw connection
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 125mm x 116mm x 90mm
- Weight: 1.5 kg
Key Features
- 45 kW rated operation power at AC 400 V.
- 80 A rated operation current at AC 400 V.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control applications
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient power management reduces energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100E Contactor 45kW 3P 24-60VAC/20-60VDC Coil Auxiliary is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
