PowerFlex 525 VSD 480V | 43A 22kW ND | IP20 Frame E by NHP
Variable speed drive with 480V input and 43A output—ideal for industrial and commercial applications. Built for enhanced efficiency with dynamic braking and PID control, IP20 rated for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

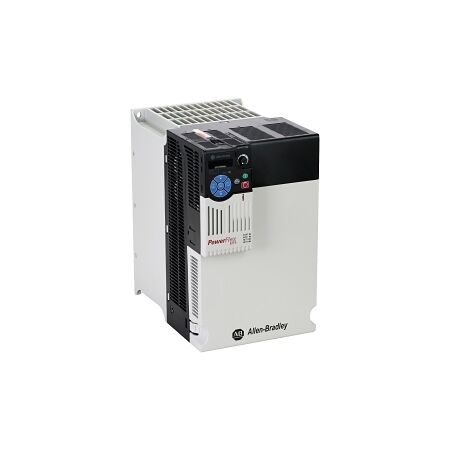

Product Name/Title: Allen-Bradley PowerFlex 525 VSD 480V IP20 43A 22kW ND or 37A 18.5kW HD Frame E
Brand: NHP
SKU: 25BD043N114
Alternatively Known As: PowerFlex 525 Variable Speed Drive, PF525 VSD, Allen-Bradley VSD
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 22 kW
- Nominal output current: 43 A
- KW rating normal duty: 22 kW
- KW rating heavy duty: 18.5 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Suitable for safety functions: Yes
- Contains keypad: Yes
- Frame size: E
- Degree of protection: IP20
- Operating temperature: -20-50 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10 kg
Key Features
- Variable speed control for enhanced efficiency.
- Dynamic braking transistor for improved performance.
- PID control characteristic for precise operation.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
- Industrial: Manufacturing, processing, and automation systems
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 525 VSD is available now for immediate purchase, ideal for industrial and commercial applications.
