Trade Discount 25%
PowerFlex 753 VSD 400V | 37A 18.5kW ND | IP54 Rated | Frame 3 by NHP
Variable speed drive with 400V input and 37A output—ideal for industrial and commercial applications. Built for energy efficiency, with IP54 protection and dynamic braking for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

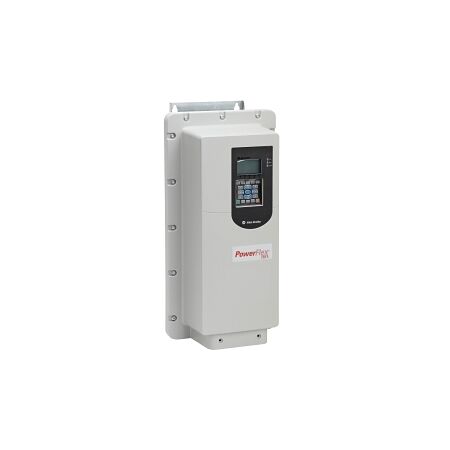

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V IP54 37A 18.5kW ND or 30A 15kW HD Frame 3
Brand: NHP
SKU: 20F11GC037JA0NNNNN
Alternatively Known As: PowerFlex 753 Variable Speed Drive, PF753 VSD, Allen-Bradley VSD
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 18.5 kW
- Nominal output current: 37 A
- KW rating normal duty: 18.5 kW
- KW rating heavy duty: 15 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 3
- Degree of protection: IP54
- Dimensions (H x L x W): 300mm x 400mm x 200mm
- Weight: 10 kg
Key Features
- Variable speed drive with PID control characteristic.
- Dynamic braking transistor included for enhanced performance.
- IP54 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Manufacturing, processing, and automation systems
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 753 VSD is available now for immediate purchase, ideal for various industrial and commercial applications.
